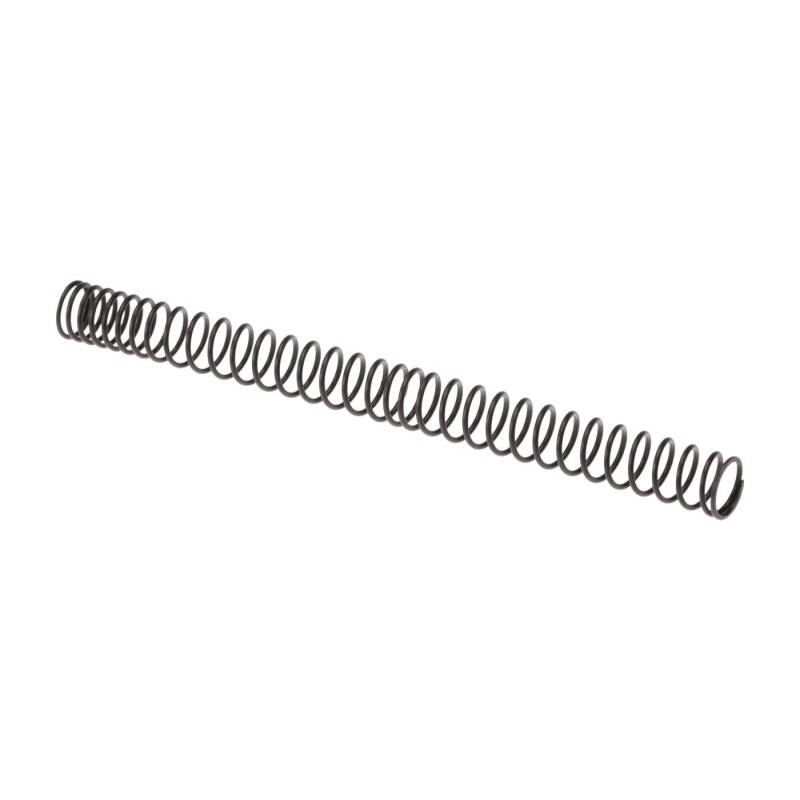

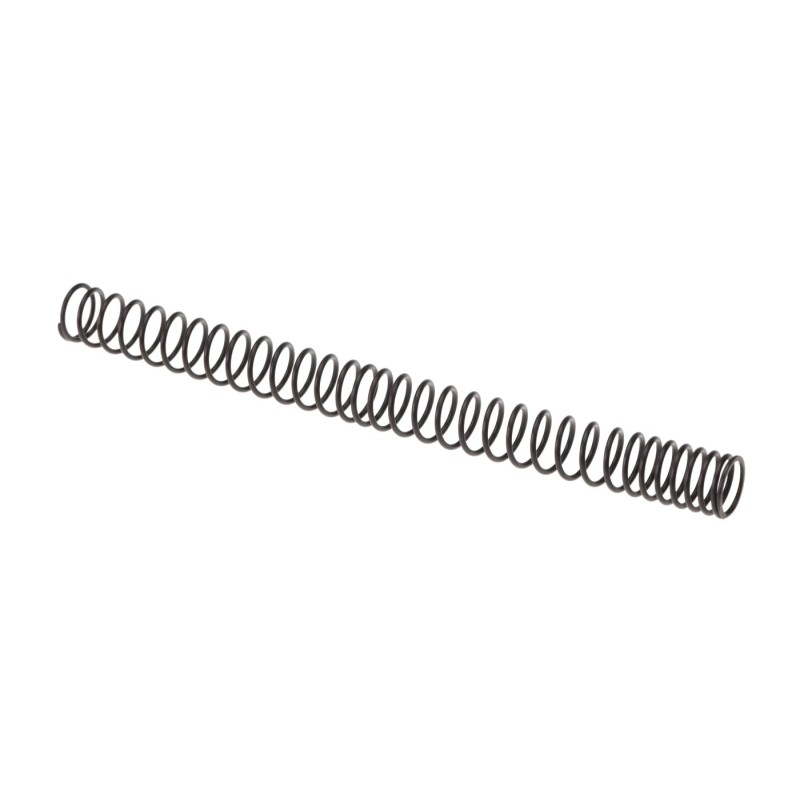

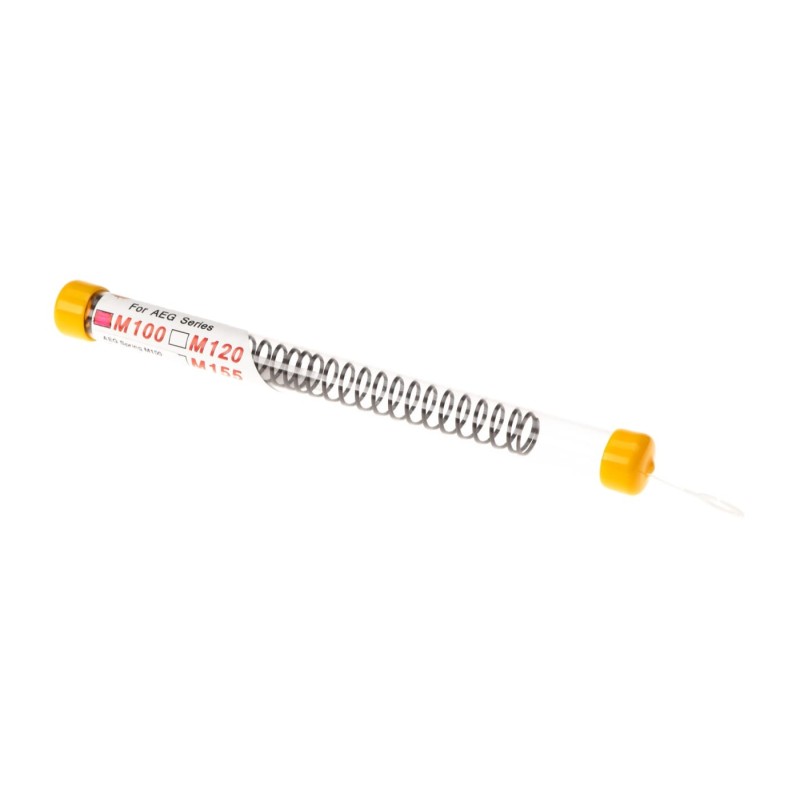

AEG Steel Spring with IRREGULAR WINDINGS - Maple Leaf
10.90
Tax included
Product made to order generally delivered in 7/10 working days.
AEG spring by Maple Leaf with a non-linear (irregular windings) design. Made of steel. Reduces stress on the piston teeth thanks to a softer initial compression. Available in different power ratings (from M100 to M155). Length 17.5cm, diameter 14.4mm. Effective power may vary.
clear
Size Guide
This is an approximate conversion table to help you find your size. If you have already purchased an item from our brand, we recommend you select the same size indicated on its label.
Men's Sizes
| International | XS | S | M | L | XL | XXL | XXXL |
|---|---|---|---|---|---|---|---|
| Europe | 32 | 34 | 36 | 38 | 40 | 42 | 44 |
| US | 0 | 2 | 4 | 6 | 8 | 10 | 12 |
| Chest Circumference (inches) | 33-35" | 36-38" | 39-41" | 42-44" | 45-47" | 48-50" | 51-53" |
| Chest Circumference (cm) | 84-89 | 91-97 | 98-104 | 107-112 | 114-119 | 122-127 | 129-134 |
| Waist Circumference (inches) | 28" | 30" | 32" | 34" | 36" | 38" | 40" |
| Waist circumference (cm) | 71 | 76 | 81 | 86 | 91.5 | 96.5 | 101.5 |
LOWA FOOTWEAR SIZE CHART
SIZE SELECTION:
THE SIZES IN THE DROP-DOWN MENU ARE UK SIZES (ENGLISH)
conversion chart: UK size - (IT size) - size in mm
Size 6.5 (40) 257mm
Size 7 (40 3/4) 262mm
Size 7.5 (41.5) 266mm
Size 8 (42) 270mm
Size 8.5 (42.5) 274mm
Size 9 (43 1/4) 278mm
Size 9.5 (44) 283mm
Size 10 (44.5) 287mm
Size 10.5 (45) 291mm
Size 11 (46) 295mm
Size 11.5 (46.5) 300mm
Size 12 (47) 304mm
Size 12.5 (48) 308mm
Size 13 (48.5) 312mm
NEED ADVICE ON CHOOSING A SIZE?
Take one of your sneakers and look at the size in mm or cm, look at the diagram above to see what it corresponds to and order your size!
e.g., your sneaker is 27.2 cm long? Great, the closest and most correct size will be: "TG 8.5 (42.5) 274mm", in the purchase menu select size 8.5UK!
Size Guide
Real time:
1
Visitor right now
By buying this product you can collect up to 1
loyalty point.
Your cart will total 1
point that can be converted into a voucher of
0.20.
This AEG (Automatic Electric Gun) spring from Maple Leaf is an upgrade component designed to improve the performance and reliability of your airsoft replica. It is characterized by a non-linear design (with irregular windings).
Features of the Non-Linear Design:
- The spring has sections with closer windings alternating with sections with more spaced windings.
- The closer windings offer a lower initial resistance during compression compared to a traditional linear spring.
- Advantage: This design significantly reduces stress on the piston teeth, especially on the engagement tooth, increasing the component's lifespan, especially in high-speed or high-power configurations.
Materials and Construction:
- Material: Made of high-quality steel spring.
- Dimensions: Length 178 cm (110 mm), Diameter 14.5 mm.
Nominal Power (M-Rating Value):
The "M" value indicated for each variant (e.g., M100, M120) is a nominal indicator of power. The actual output velocity (FPS/Joule) depends heavily on many factors (air seal, inner barrel, etc.).
Technical Specifications:
- Type: AEG spring with irregular windings (Non-Linear)
- Material: Steel
- Length: 180 mm
- Outer Diameter: 14.5 mm
- Brand: Maple Leaf
- Compatibility: Standard AEG gearboxes (V2, V3, etc.)
Available Variants and Specifications:
| Variant (M-Rating) | Nominal Force* (kg) | Nominal Force* (lbs) |
|---|---|---|
| *Nominal Force ("Nib strength") indicated by the manufacturer. It may not directly correspond to the force required to compress the spring in the gearbox. The actual power (FPS/Joule) varies based on the configuration. Always verify with a chronograph. | ||
| M100 | 7.96 kg | 17.55 lbs |
| M120 | 10.1 kg | 22.27 lbs |
| M135 | 11.73 kg | 25.86 lbs |
| M155 | 20.1 kg | 44.31 lbs |
Advantages:
- Irregular windings design (non-linear) to reduce stress on the piston
- Made of quality steel
- Potentially improves the lifespan of gearbox components
IMPORTANT - LEGAL and TECHNICAL WARNING:
- Springs with M120 and higher ratings can easily cause the replica to exceed the legal limit of 1 Joule allowed in Italy.
- It is the end user's responsibility to verify the power of their replica with a chronograph after installation and ensure that it complies with current regulations and field rules.
- Installing powerful springs often requires reinforced internal components. If you are unsure about the installation, consult an experienced technician.
10989400000,AS100
Data sheet
- Composition
- Acciaio
- COMPATIBILITA' GEAR BOX
- Universale
- ALIMETAZIONE REPLICA
- AEG
