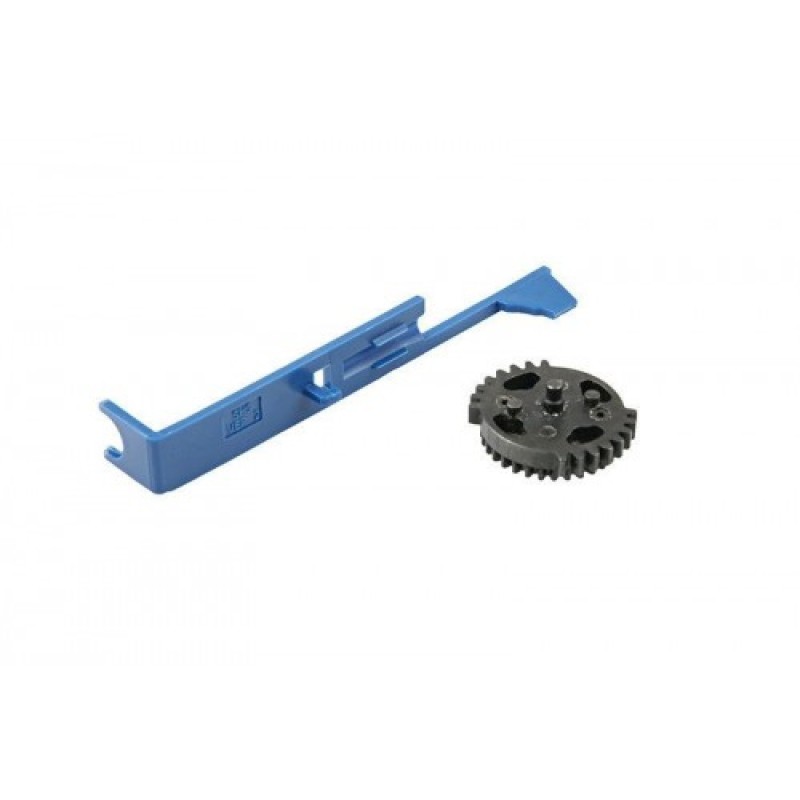

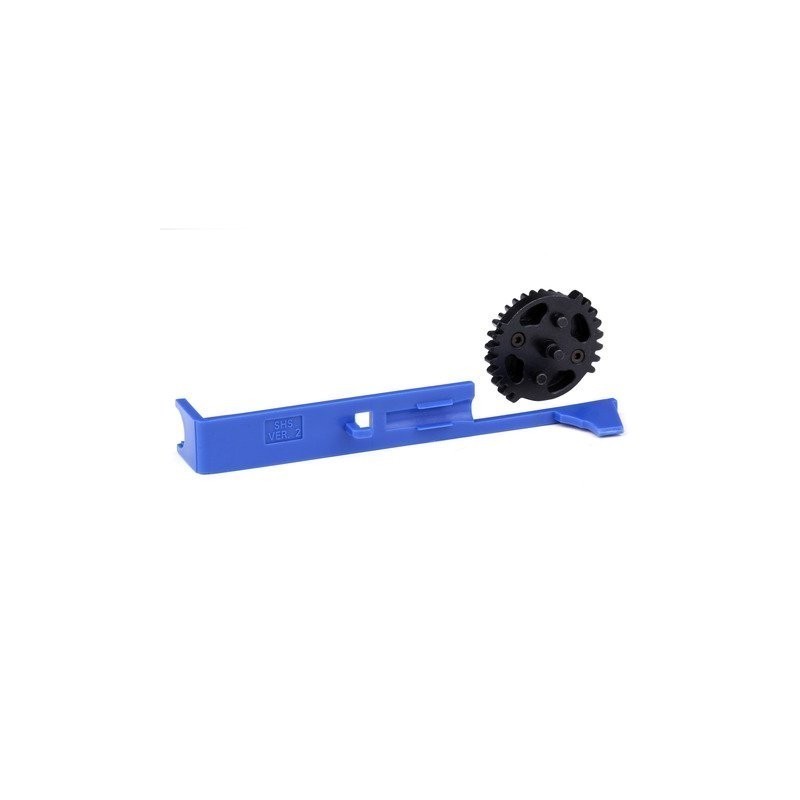

SHS V2 Air Nozzle and DSG Sector Gear Kit

22.90

Tax included

SHS kit for V2 gearbox with double sector gear (DSG) and specific air nozzle (LQ0001). Gear made of hardened steel alloy, CNC machined. Doubles the rate of fire (ROF). Compatible with standard and high-speed gears. Recommended for inner barrels up to 363mm. Requires technical skills for installation.

Size Guide

This is an approximate conversion table to help you find your size. If you have already purchased an item from our brand, we recommend you select the same size indicated on its label.

Men's Sizes

International	XS	S	M	L	XL	XXL	XXXL
Europe	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
Chest Circumference (inches)	33-35"	36-38"	39-41"	42-44"	45-47"	48-50"	51-53"
Chest Circumference (cm)	84-89	91-97	98-104	107-112	114-119	122-127	129-134
Waist Circumference (inches)	28"	30"	32"	34"	36"	38"	40"
Waist circumference (cm)	71	76	81	86	91.5	96.5	101.5

LOWA FOOTWEAR SIZE CHART

SIZE SELECTION:

THE SIZES IN THE DROP-DOWN MENU ARE UK SIZES (ENGLISH)

conversion chart: UK size - (IT size) - size in mm

Size 6.5 (40) 257mm

Size 7 (40 3/4) 262mm

Size 7.5 (41.5) 266mm

Size 8 (42) 270mm

Size 8.5 (42.5) 274mm

Size 9 (43 1/4) 278mm

Size 9.5 (44) 283mm

Size 10 (44.5) 287mm

Size 10.5 (45) 291mm

Size 11 (46) 295mm

Size 11.5 (46.5) 300mm

Size 12 (47) 304mm

Size 12.5 (48) 308mm

Size 13 (48.5) 312mm

NEED ADVICE ON CHOOSING A SIZE?

Take one of your sneakers and look at the size in mm or cm, look at the diagram above to see what it corresponds to and order your size!

e.g., your sneaker is 27.2 cm long? Great, the closest and most correct size will be: "TG 8.5 (42.5) 274mm", in the purchase menu select size 8.5UK!

Real time: 1 Visitor right now

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 points that can be converted into a voucher of 0.40.

Description
Product Details

This SHS kit is an advanced upgrade for version 2 (V2) gearboxes, designed to double the rate of fire (ROF) of your airsoft replica. The kit includes:

Double Sector Gear (DSG): Unlike a standard sector gear, which completes one firing cycle per full rotation, the DSG has two toothed sectors, completing two firing cycles per rotation. This, at the same motor speed, doubles the rate of fire.
Specific air nozzle (code LQ0001): A modified air nozzle, necessary to function correctly with the DSG gear.

The DSG gear is made of hardened steel alloy to withstand high stress and wear. It is machined with CNC machinery to ensure maximum precision and flawless operation.

Features and Compatibility:

Compatible with all standard and high-speed gears: Can be used with standard ratio gears or high-speed gears (the final ratio will depend on the chosen combination).
Recommended for inner barrels up to 363mm: For longer barrels, the air volume may not be sufficient to propel the BB optimally with such a rapid cycle.
Requires technical skills: Installing a DSG kit is complex and requires an in-depth knowledge of the gearbox operation and the necessary modifications (e.g. spring shortening, lightened piston, etc.). It is strongly recommended to entrust the installation to an experienced technician.

Technical Specifications:

Type: Double sector gear (DSG) + air nozzle kit
Compatibility: Version 2 (V2) gearbox
Gear Material: Hardened steel alloy, CNC machined
Air Nozzle Material: Polymer
Brand: SHS
Air Nozzle Code: LQ0001
Gear Ratio: DSG

Advantages:

Doubles the rate of fire (ROF)
Hardened steel alloy gear CNC machined
Includes specific air nozzle
Compatible with standard and high-speed gears

WARNING: Installing this kit requires advanced technical skills. Consult an expert if necessary. The use of M150/M160 springs with a standard sector gear generates power levels exceeding 2 joules; with a DSG, the power will be lower due to the halved cycle, but it is still necessary to verify the resulting power and comply with current regulations.
