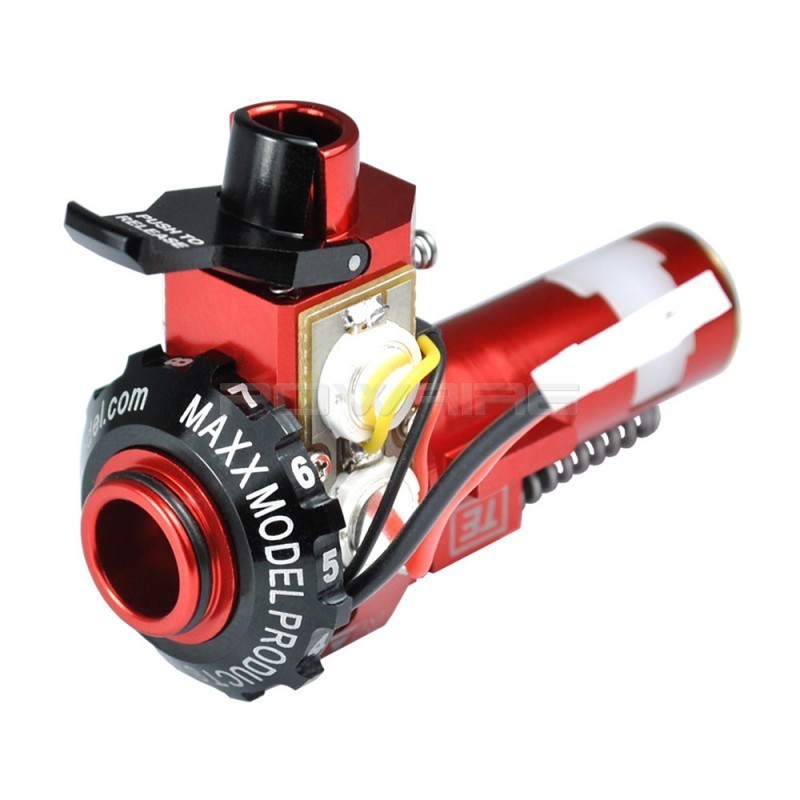

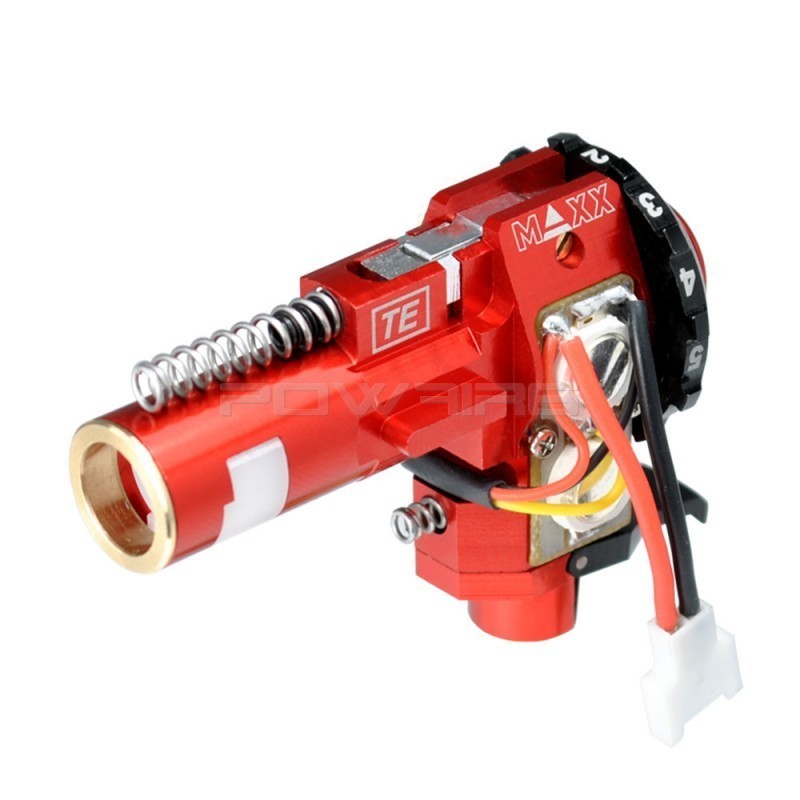

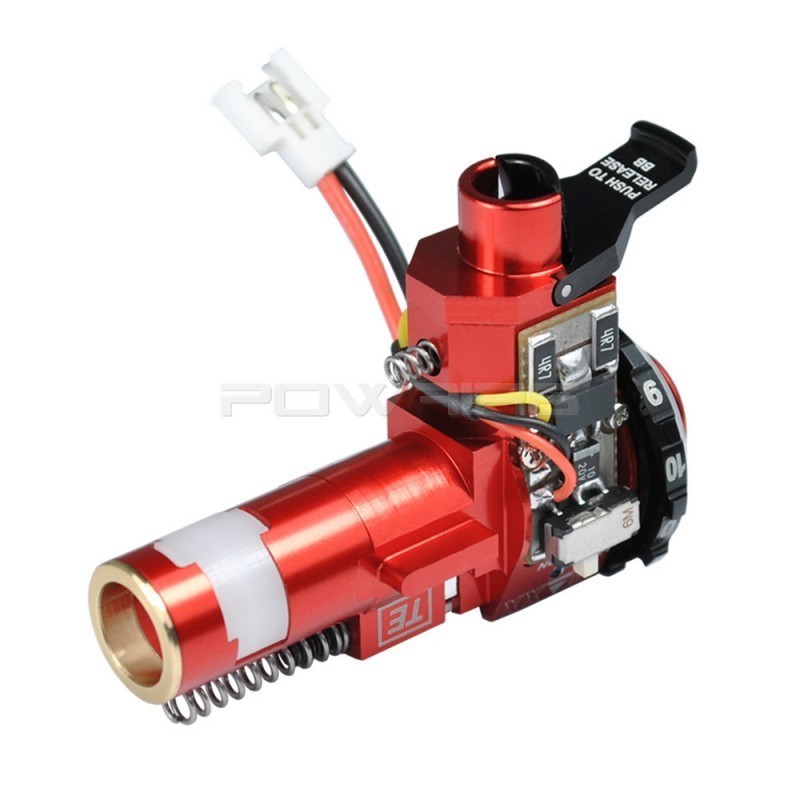

Maxx Model CNC Hopup Chamber TE PRO w/ LED for M4 AEG
89.90
Tax included
CNC Aluminum Hop-Up Chamber TE Pro with Latching System and LED unit specifically designed for fast feeding BBs and preventing BBs from dropping after removing the magazine on M4 / M16 series AEG Airsoft rifles.
clear
Size Guide
This is an approximate conversion table to help you find your size. If you have already purchased an item from our brand, we recommend you select the same size indicated on its label.
Men's Sizes
| International | XS | S | M | L | XL | XXL | XXXL |
|---|---|---|---|---|---|---|---|
| Europe | 32 | 34 | 36 | 38 | 40 | 42 | 44 |
| US | 0 | 2 | 4 | 6 | 8 | 10 | 12 |
| Chest Circumference (inches) | 33-35" | 36-38" | 39-41" | 42-44" | 45-47" | 48-50" | 51-53" |
| Chest Circumference (cm) | 84-89 | 91-97 | 98-104 | 107-112 | 114-119 | 122-127 | 129-134 |
| Waist Circumference (inches) | 28" | 30" | 32" | 34" | 36" | 38" | 40" |
| Waist circumference (cm) | 71 | 76 | 81 | 86 | 91.5 | 96.5 | 101.5 |
LOWA FOOTWEAR SIZE CHART
SIZE SELECTION:
THE SIZES IN THE DROP-DOWN MENU ARE UK SIZES (ENGLISH)
conversion chart: UK size - (IT size) - size in mm
Size 6.5 (40) 257mm
Size 7 (40 3/4) 262mm
Size 7.5 (41.5) 266mm
Size 8 (42) 270mm
Size 8.5 (42.5) 274mm
Size 9 (43 1/4) 278mm
Size 9.5 (44) 283mm
Size 10 (44.5) 287mm
Size 10.5 (45) 291mm
Size 11 (46) 295mm
Size 11.5 (46.5) 300mm
Size 12 (47) 304mm
Size 12.5 (48) 308mm
Size 13 (48.5) 312mm
NEED ADVICE ON CHOOSING A SIZE?
Take one of your sneakers and look at the size in mm or cm, look at the diagram above to see what it corresponds to and order your size!
e.g., your sneaker is 27.2 cm long? Great, the closest and most correct size will be: "TG 8.5 (42.5) 274mm", in the purchase menu select size 8.5UK!
Size Guide
Real time:
1
Visitor right now
By buying this product you can collect up to 8
loyalty points.
Your cart will total 8
points that can be converted into a voucher of
1.60.
CNC Aluminum Hop-Up Chamber TE Pro with Latching System and LED unit specifically designed for fast feeding BBs and preventing BBs from dropping after removing the magazine on M4 / M16 series AEG Airsoft rifles. The Hopup Chamber TE unit is machined from a solid block of aircraft aluminum with tight tolerances to provide maximum precision, range, and longevity for your airsoft rifles. The Hopup Chamber TE unit has a built-in Dial knob for precise adjustments and has specially redesigned Hopup Arms to work with R-hop, Flat-Hop, and Standard-Hop accurately and reliably for maximum performance on every single shot. Furthermore, its structure allows for easy disassembly for quick and effective maintenance.
The Hopup Chamber TE unit was designed to accept a wide range of air nozzles from 20.50mm to 21.00mm in length, and fully compatible with most aftermarket hop-up buckings in soft or hard rubber without losing FPS or BB range. The Hopup Chamber TE Housing is equipped with 3 o-rings, 3 compression springs on the top, bottom, and center of the housing, to ensure the hop-up unit is exactly centered, straight, and airtight at all times, adapting to V2 gearboxes with 11mm or 12mm bore. In addition, the TE Pro unit was specially designed with a BB Latching System for automatic BB locking in the Hopup chamber to prevent dropping BBs in the hop-up after removing the magazine.
Yet, the Latching system will automatically open fully for quick magazine changes. The Latching system can also be opened manually to manually release the BBs at the end of the game. Included with this hop-up system is also a UV LED and flash specifically for using tracer BBs without the need to adapt an external illuminator. Operating voltage from 7VDC - 20VDC (2-5 cell LiPo, 6-16 cell NiCad).
*** Test results: FPS may be increased from 5% to 10%. Please check your FPS!

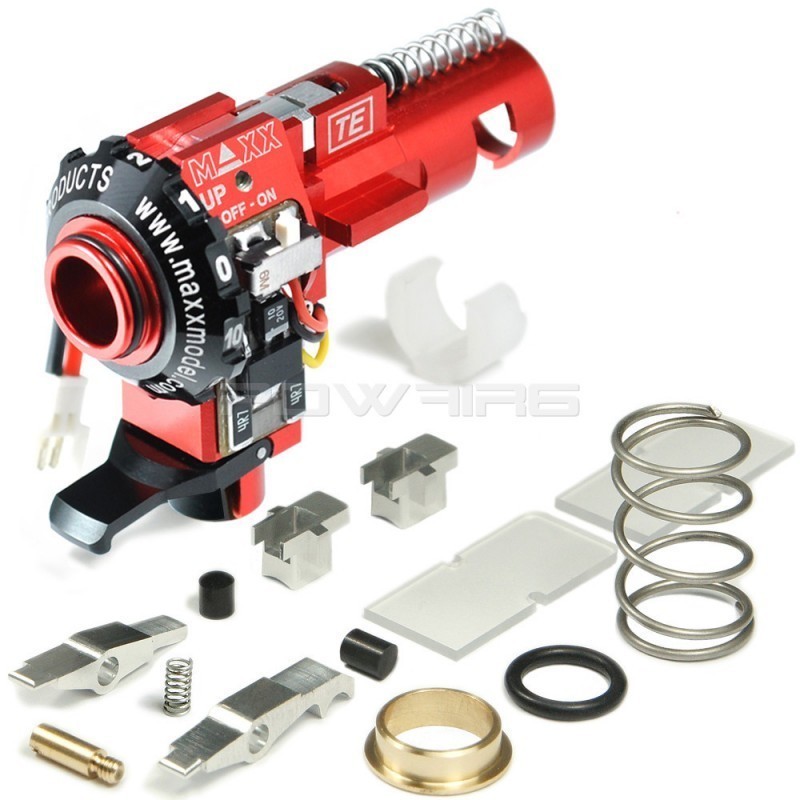

1 x CNC Aluminum Hopup Chamber TE Pro with Latching System Unit
1 x LED and Electronic Modules Set
1 x CNC Aluminum Standard Arm
1 x CNC Aluminum R-Hop Arm
1 x Rubber Silicone Standard Nub Damper
1 x Rubber Silicone R-Hop Damper
5mm Length CNC Aluminum Precision R-Hop Core
6mm Length CNC Aluminum Precision R-Hop Core
1 x CNC Threaded Brass Pivot Pin
1 x CNC Delrin Locking C-Clip
1 x CNC Barrel Brass Spacer
1 x Steel Compression Center Spring
Specifications
Overall Length: 52.25mm
Overall Height: 37.75mm
Hub Outer Diameter (to fit outer barrel): Min 12mm
Hub Inner Diameter (to fit air nozzle): Max 8mm
Feeder Outer Diameter (to fit magazine): Min 9.25mm
Feeder Length (to fit magazine): Max 6.25mm
Material: Aluminum 6061
