T hop-up M4E CNC Aluminum for M4 series - MAXX MODEL
89.90
Tax included
Product made to order generally delivered in 7/10 working days.

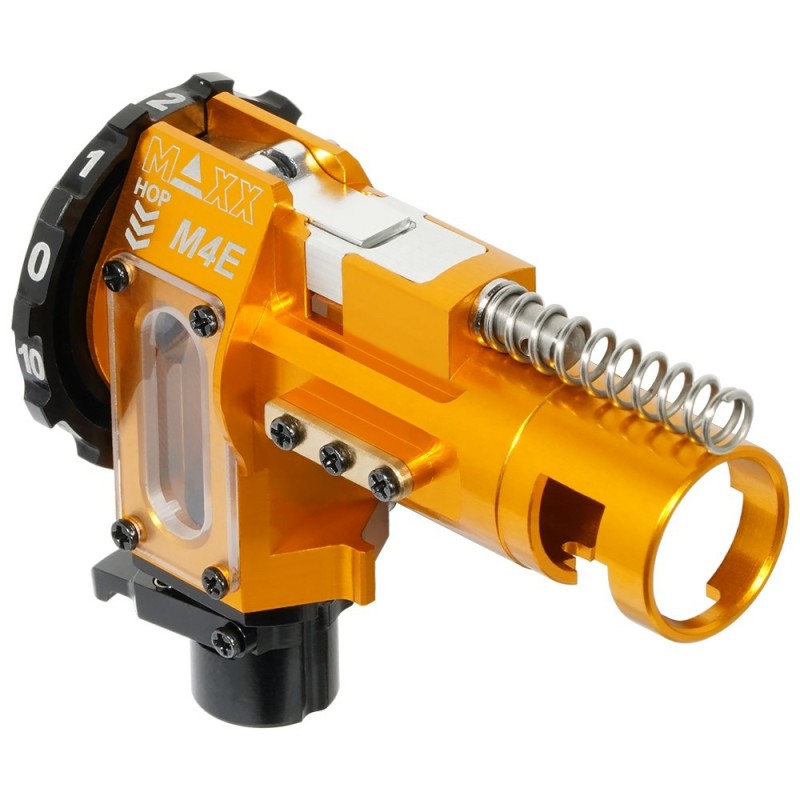

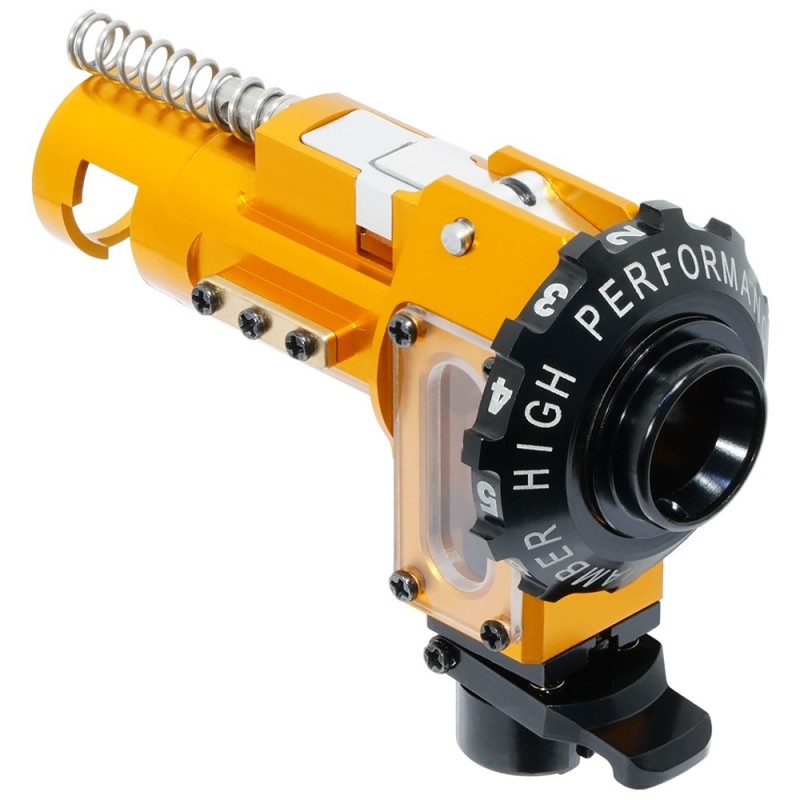

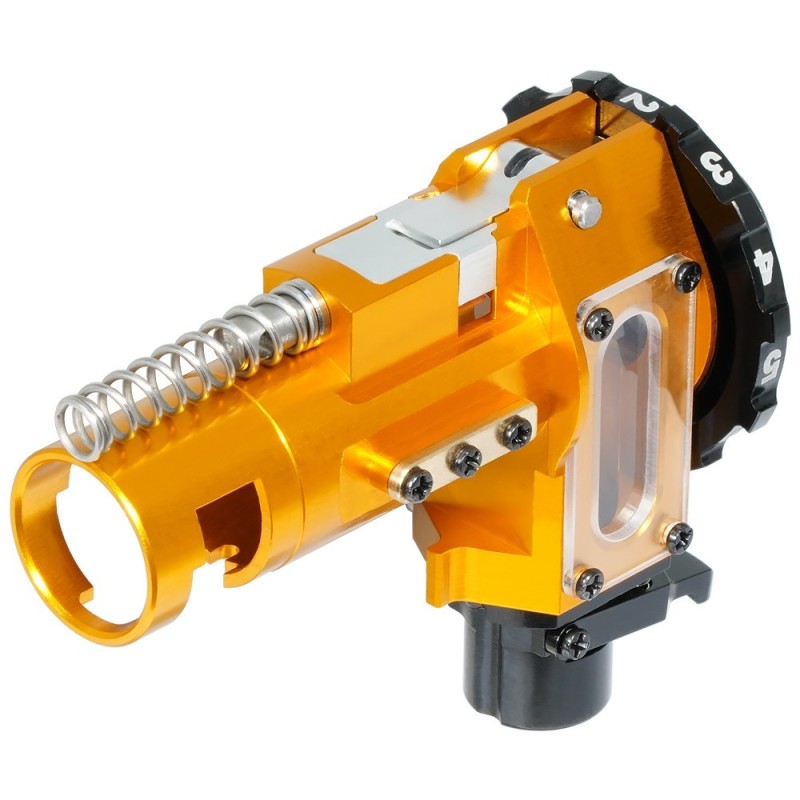

The MAXX MODEL M4E hop-up chamber is a high-performance CNC 6061 aluminum unit for M4/M16 AEG replicas (TM/VFC standard and clones). Precise rotary adjustment, lever and multiple included nubs. BB retention system (anti-BB drop), Delrin barrel block, brass side wings, and air nozzle inlet adapter. Compatible with standard AEG buckings.
clear
Size Guide
This is an approximate conversion table to help you find your size. If you have already purchased an item from our brand, we recommend you select the same size indicated on its label.
Men's Sizes
| International | XS | S | M | L | XL | XXL | XXXL |
|---|---|---|---|---|---|---|---|
| Europe | 32 | 34 | 36 | 38 | 40 | 42 | 44 |
| US | 0 | 2 | 4 | 6 | 8 | 10 | 12 |
| Chest Circumference (inches) | 33-35" | 36-38" | 39-41" | 42-44" | 45-47" | 48-50" | 51-53" |
| Chest Circumference (cm) | 84-89 | 91-97 | 98-104 | 107-112 | 114-119 | 122-127 | 129-134 |
| Waist Circumference (inches) | 28" | 30" | 32" | 34" | 36" | 38" | 40" |
| Waist circumference (cm) | 71 | 76 | 81 | 86 | 91.5 | 96.5 | 101.5 |
LOWA FOOTWEAR SIZE CHART
SIZE SELECTION:
THE SIZES IN THE DROP-DOWN MENU ARE UK SIZES (ENGLISH)
conversion chart: UK size - (IT size) - size in mm
Size 6.5 (40) 257mm
Size 7 (40 3/4) 262mm
Size 7.5 (41.5) 266mm
Size 8 (42) 270mm
Size 8.5 (42.5) 274mm
Size 9 (43 1/4) 278mm
Size 9.5 (44) 283mm
Size 10 (44.5) 287mm
Size 10.5 (45) 291mm
Size 11 (46) 295mm
Size 11.5 (46.5) 300mm
Size 12 (47) 304mm
Size 12.5 (48) 308mm
Size 13 (48.5) 312mm
NEED ADVICE ON CHOOSING A SIZE?
Take one of your sneakers and look at the size in mm or cm, look at the diagram above to see what it corresponds to and order your size!
e.g., your sneaker is 27.2 cm long? Great, the closest and most correct size will be: "TG 8.5 (42.5) 274mm", in the purchase menu select size 8.5UK!
Size Guide
Real time:
1
Visitor right now
By buying this product you can collect up to 8
loyalty points.
Your cart will total 8
points that can be converted into a voucher of
1.60.
The MAXX MODEL M4E hop-up chamber is a premium upgrade component, precision CNC machined from a solid block of 6061 aircraft-grade aluminum. It is designed to offer accurate and consistent performance on electric airsoft guns (AEGs) of the M4/M16 series based on the Tokyo Marui / VFC standard and compatible clones.
Key Features:
- Materials and CNC Machining: Made with tight tolerances for maximum accuracy, consistency, and durability.
- Precise Rotary Adjustment: Equipped with an aluminum rotary dial for fine and stable hop-up adjustments.
- Hop-Up Lever and Multiple Nubs: Includes a precision hop-up lever and various types of nubs in CNC aluminum (soft round, soft flat, hard concave) to optimize performance with standard AEG hop-up buckings.
- Bucking Compatibility: Fully compatible with most aftermarket standard AEG buckings, soft and hard, without FPS loss or BB drop.
- Air Nozzle Inlet Adaptor: Equipped with an interchangeable adapter to ensure the hop-up unit is inserted perfectly in the center of the gearbox nozzle outlet, without wobbling.
- Removable CNC Brass Side Wings: Ensure smooth insertion into the outer barrel grooves.
- Advanced CNC Delrin Locking C-Clip: Securely holds the inner barrel in place without wobbling or twisting.
- BB Retention System (BB Latching System): A system that prevents BBs from falling out after removing the magazine. BBs can be manually released by pressing the appropriate lever.
- Double Compression Springs: An upper and a central spring ensure the hop-up unit is positioned straight and airtight.
Technical Specifications:
- Type: CNC Hop-Up Chamber
- Model: M4E (with BB Latching System)
- Replica Compatibility: AEG M4/M16 standard Tokyo Marui, VFC and clones
- Bucking Compatibility: Standard AEG
- Material: CNC 6061 Aluminum, Acrylic (side covers), CNC Brass (wings, barrel spacer), Steel (pivot, spring guide, springs), CNC Delrin (C-Clip)
- Total Length: 51.65mm
- Total Height: 37.75mm
- Brand: MAXX MODEL
- Production: Canada
Advantages:
- Precision, consistency, and durability thanks to CNC machining and materials
- Fine rotary hop-up adjustment
- Optimal support for standard AEG buckings with included nubs
- Excellent air seal and centering (Adapter, Wings, C-Clip, Springs)
- Anti-BB drop system (BB Latching System)
Important Notes:
- Installation requires technical skills. The use of protective eyewear and lubrication is recommended.

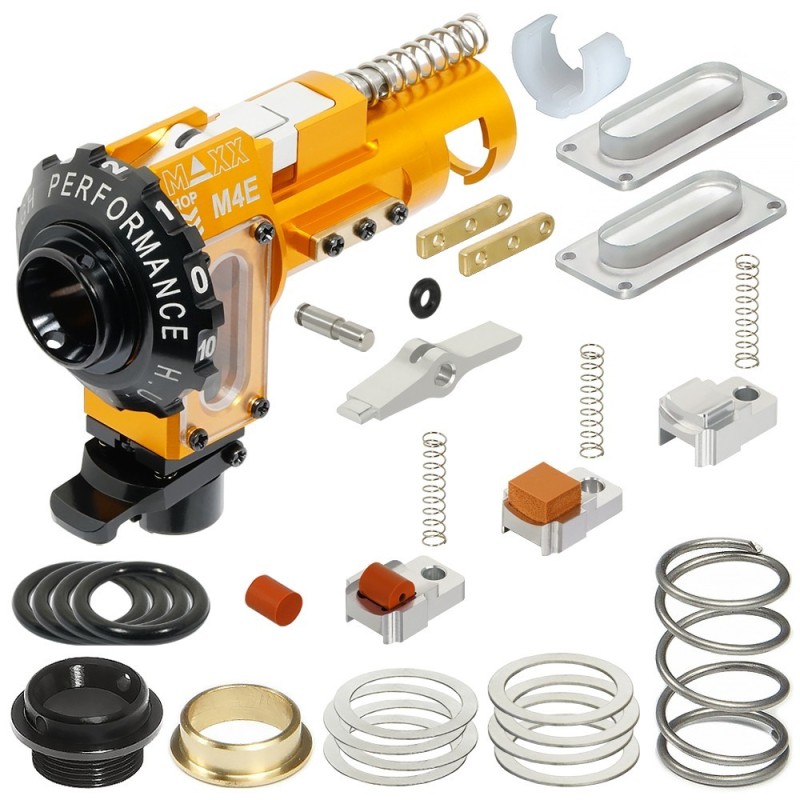

Package Contents:
- 1x CNC M4E Hopup Chamber (with BB Latching System)
- 2x CNC Acrylic Side Covers
- 2x 2.5mm CNC Brass Side Wings
- 1x CNC Steel Pivot Pin
- 1x CNC Aluminum Hopup Lever
- 1x CNC Aluminum Soft Round Nub
- 1x CNC Aluminum Soft Flat Nub
- 1x CNC Aluminum Hard Concave Nub
- 3x Steel Nub Springs
- 1x CNC Steel Spring Guide
- 1x Steel Upper Compression Spring
- 1x Steel Central Compression Spring
- 1x CNC Delrin Locking C-Clip
- 1x CNC Brass Barrel Spacer
- 1x Barrel Spacer O-ring
- 1x CNC Aluminum Rotary Dial
- 1x CNC Aluminum Air Nozzle Inlet Adapter
- 1x Shim set
- 1x O-ring set
MX-HOP020ME,12526200000
