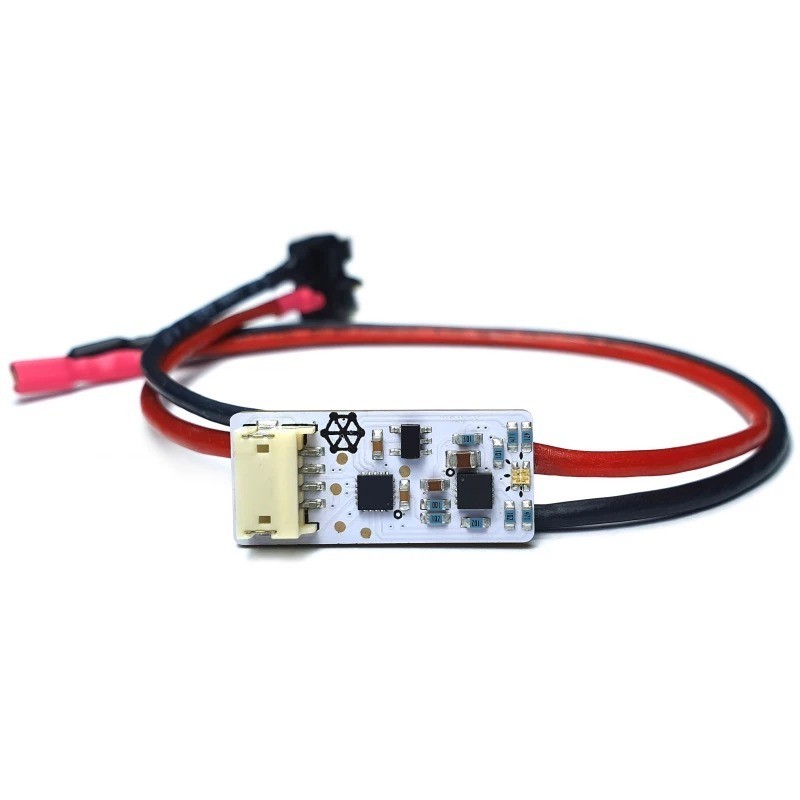

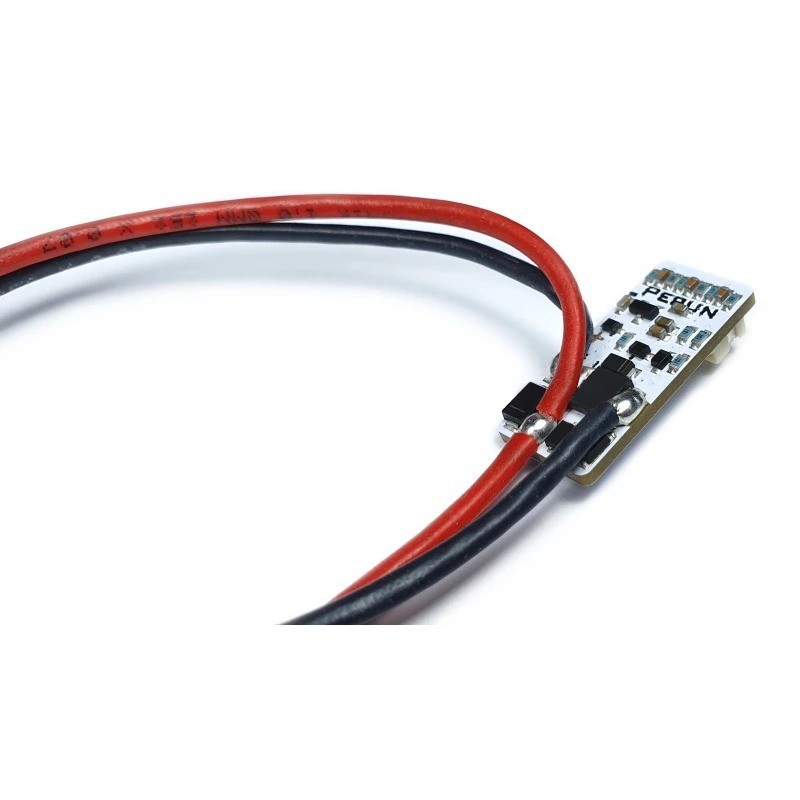

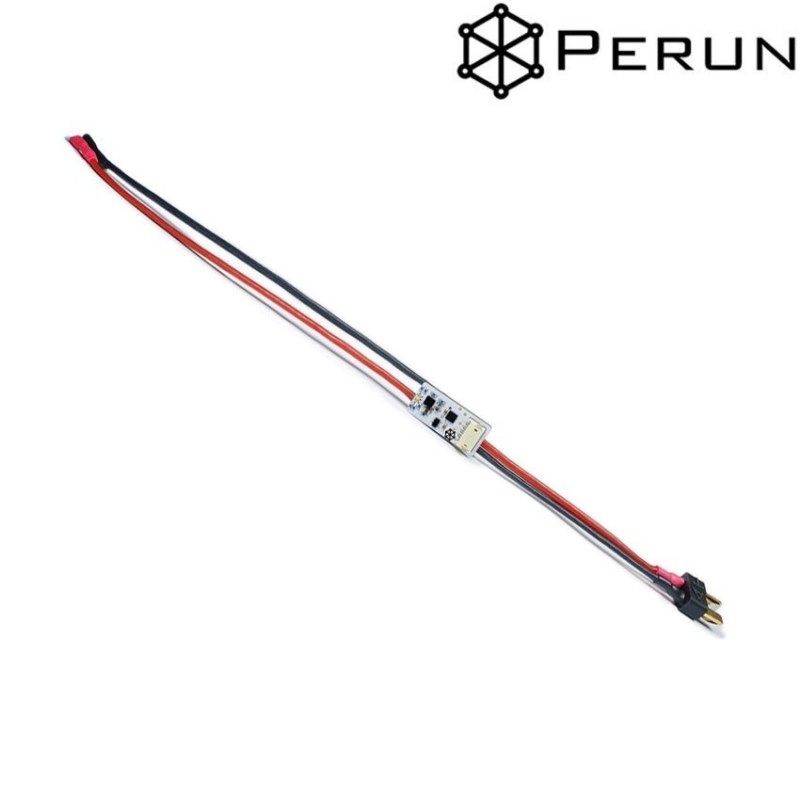

The ETU++ by PERUN is an electronic module specifically designed to replace the standard electronic control unit (ETU) found in electric airsoft (AEG) replicas manufactured by G&G. It is compatible with any G&G replica that uses the standard ETU.

This "drop-in" module adds a wide range of advanced functions, transforming the performance and versatility of your G&G replica.

Key Features and Functions:

  • Dedicated Replacement for G&G ETU: Installs in place of the original electronic unit.
  • Independent Programmable Firing Modes: It is possible to program any firing mode (safe, semi, burst, auto) on each selector position independently. Available modes include:
    • Safe
    • Semi (single shot)
    • Binary trigger (single shot on trigger press and release)
    • Burst (from 2 to 5 shots)
    • Auto (full auto)
  • Active Brake: Stops the motor after each shot, preventing spring compression at rest and "double shot".
  • Pre-cocking: The piston is pre-loaded after each shot, ensuring a faster trigger response.
  • Binary trigger:
  • ROF (Rate Of Fire) Reduction: Allows you to reduce the rate of fire.
  • DMR Mode: Sets a delay between shots in semi-automatic mode.
  • Low Battery Alarm: Dedicated for Li-Po and Li-Ion batteries. Alerts the user with repeated beeps when the voltage is low. Can be enabled/disabled.
  • Diagnostics System: Monitors the replica and the module itself, indicating any problems.
  • Electronic Fuse: Protects the motor and battery from short circuits or blockages.
  • Simple Programming: All settings are programmed using the trigger and a button on the device, via quick and memorizable sequences, supported by sound signals and a multicolor LED. No external accessories are required.
  • Battery Compatibility: From 7.4V up to 14.8v

Technical Specifications:

  • Type: Replacement electronic module for G&G ETU
  • Compatibility: All G&G replicas with standard ETU
  • Functions: See list above
  • Programming: Via trigger and button
  • Brand: PERUN
  • Operating Voltage: 7V - 17V (7.4V, 11.1V, 14.8V Li-Po)

Advantages:

  • Dedicated and simple replacement for G&G ETU
  • Adds numerous advanced functions
  • Improves trigger response and reliability
  • Protects the replica and battery
  • Easy to program without external accessories
  • Wide compatibility with batteries

Package Contents:

  • ETU++ Module

PERUN008

Data sheet

COMPATIBILITA' GEAR BOX
Dedicato
STANDARD ATTACCO
T- Deans
Elettronica
Mosfet Programmabile
