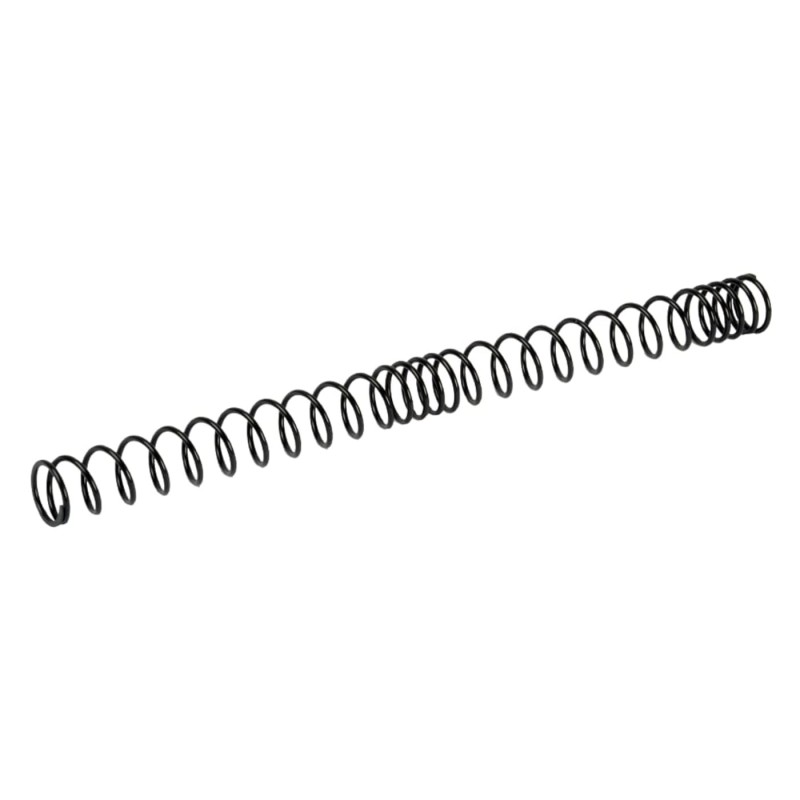

AEG Spring in IRREGULAR SPIRE steel - Element

This AEG (Automatic Electric Gun) spring from Element is a reliable and affordable replacement or upgrade component. It features an irregular spire (non-linear pitch) design, which aims to provide a softer initial compression and a faster release than traditional linear springs, potentially improving trigger response and reducing stress on the gearbox.

Nominal Power (M-Rating):

The "M" value indicated for each variant (e.g. M115, M135) represents a nominal value that corresponds approximately to the BB's muzzle velocity in meters per second (m/s) using 0.20g BBs (e.g. M115 ≈ 115 m/s). To obtain the approximate value in FPS (feet per second), multiply the value in m/s by 3.28.

IMPORTANT - Actual Power:

• The nominal value is only a guideline.
• The actual power of the replica depends heavily on many factors: assembly quality, air seal of the system (cylinder, piston, cylinder head, air nozzle, hop-up bucking), length and diameter of the inner barrel, etc.
• It is common for the actual value to deviate up to 10% (often in excess) from the nominal value.
• When in doubt, always choose the spring with the lower nominal power to avoid exceeding legal or field limits.
• To achieve a specific muzzle velocity, it is often necessary to try different combinations of components.
• Systems with excellent air seal (e.g. KWA G2X) will require springs with significantly lower nominal values.

Technical Specifications:

• Type: Irregular Spire AEG Spring
• Material: Steel
• Brand: Element
• Compatibility: Standard AEG gearboxes (V2, V3, etc.)

Available Variants and Specifications:

Advantages:

• Irregular spire design for potential improvement in response and stress reduction
• Wide range of power ratings available
• Good value for money
