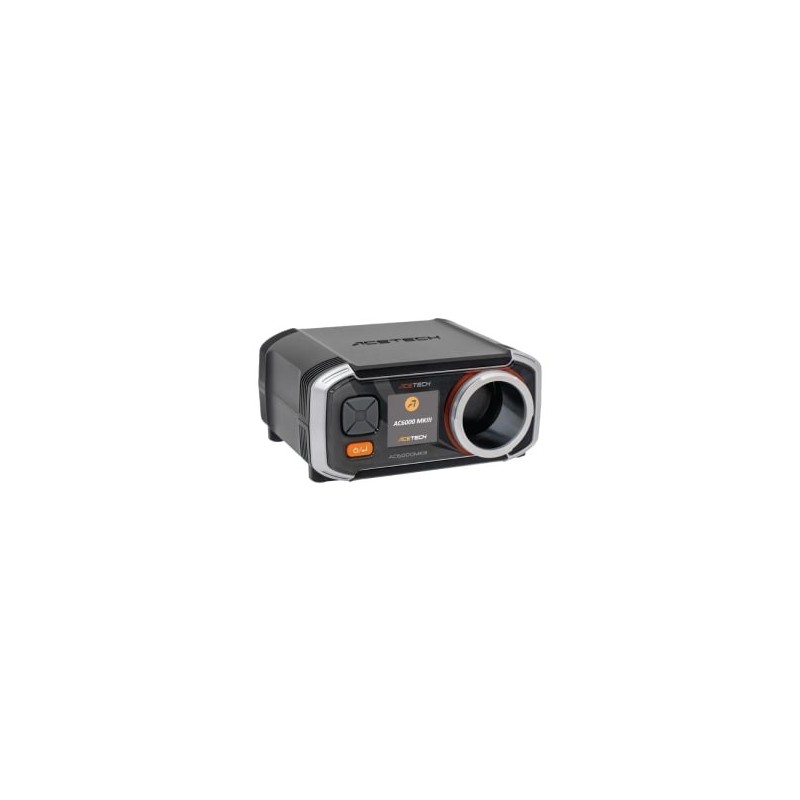

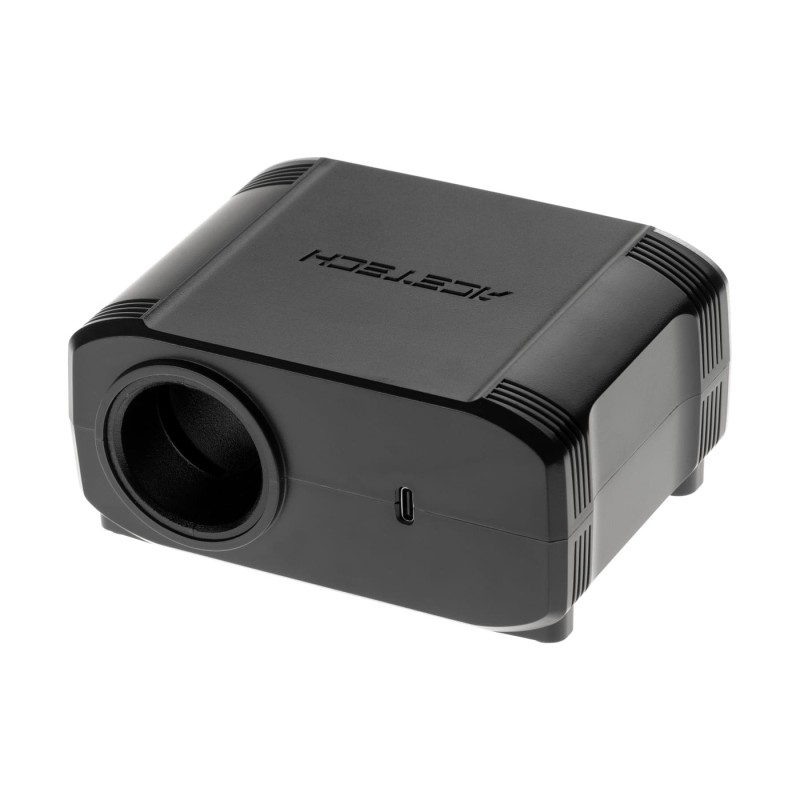

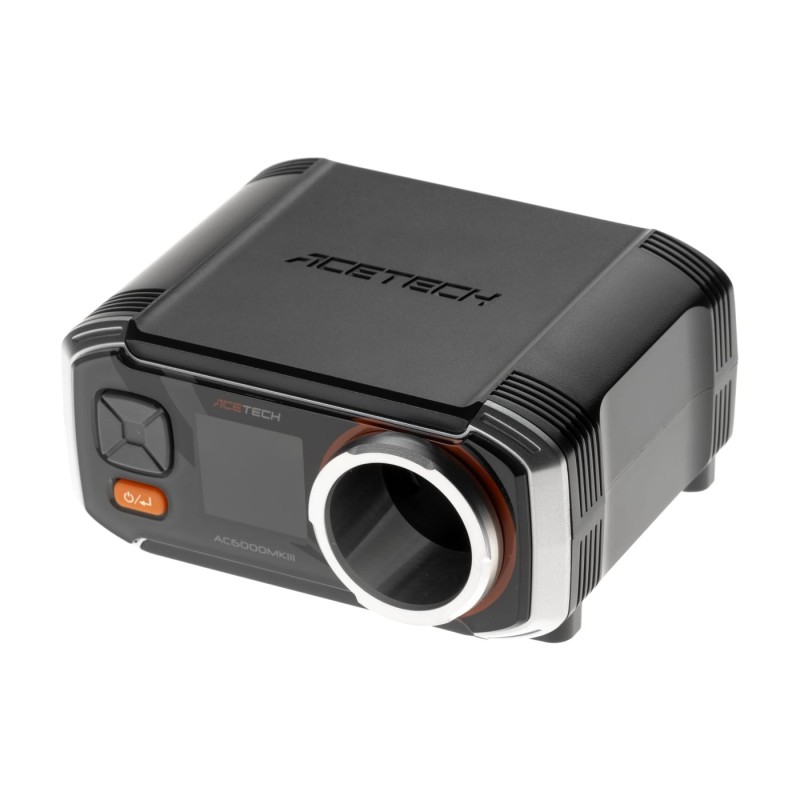

AC6000 MK3 Chronograph - AceTech

The AceTech AC6000 MKIII is an advanced chronograph designed to accurately measure the muzzle velocity (m/s or FPS), energy (Joule), and rate of fire (RPM) of your replicas. It uses patented technology with LED lenses and IR sensors to provide extremely accurate readings.

Compared to previous versions, it features a larger 36mm measuring tube, suitable for a wide range of calibers and wider barrels.

Main Features:

• Color LCD Display: A brilliant 240x240 pixel color LCD screen, backlit, clearly displays all data: speed, ROF, energy in Joules, BB weight, and more.

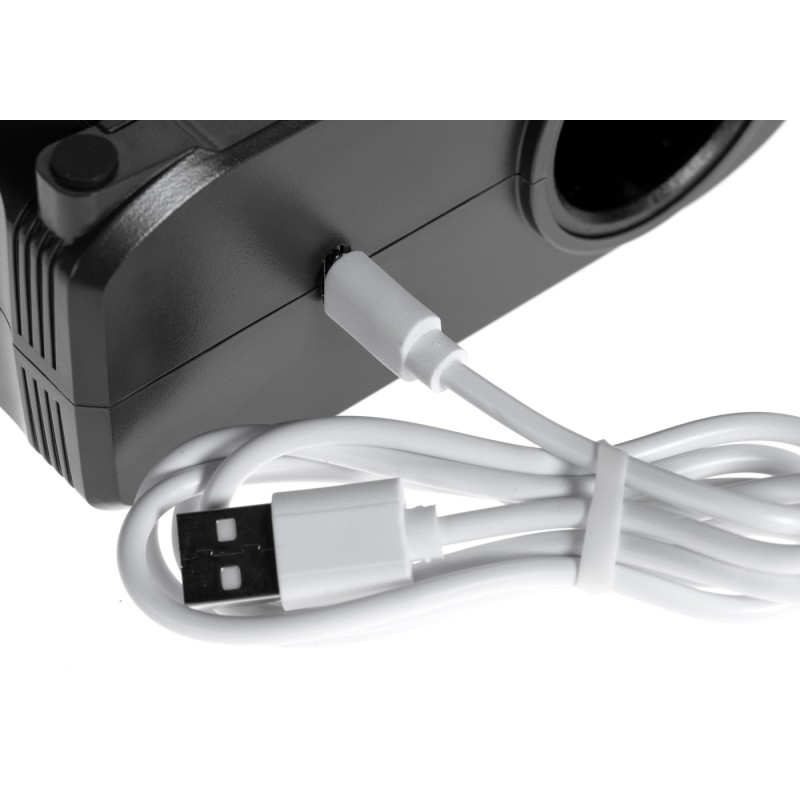

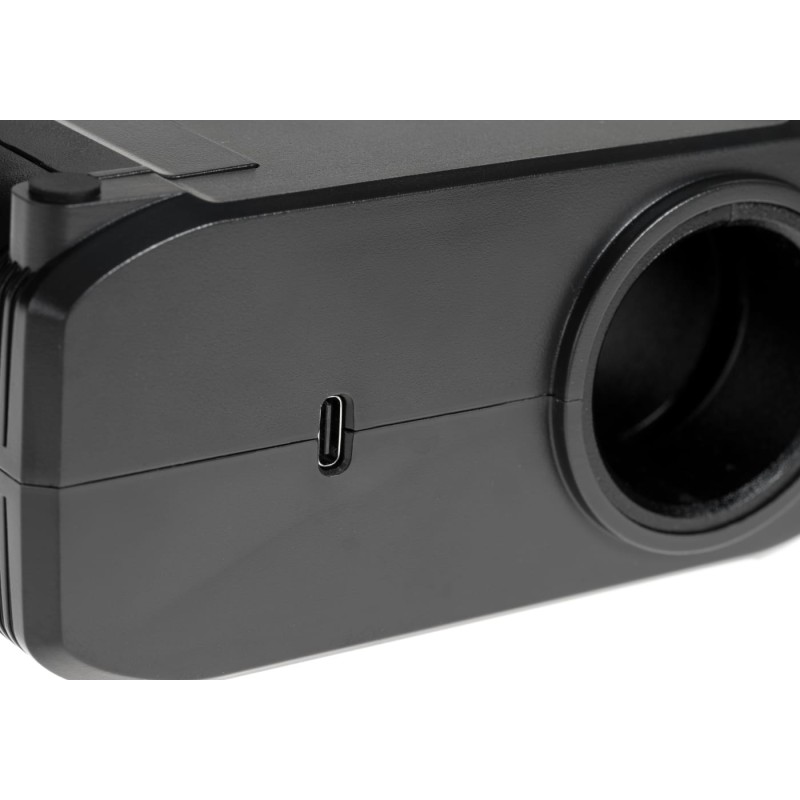

• Flexible Dual Power: It can be powered by 4 AA batteries (not included) for maximum portability, or via the USB-C port connected to a power bank or wall adapter for extended use without worrying about the charge.
• Memory Functions:
  • Shot Memory: Automatically stores the last 25 measurements.
  • BB Profile Memory: You can save up to 5 ammo profiles (weight/caliber) for quick recall.
• Precision Sensors: The patented technology of LED lenses and IR sensors ensures high accuracy.
• Functional Design: Robust but compact plastic construction. It features a standard 1/4"-20 UNC thread for tripod mounting (not included).
• Automatic Shutdown: To preserve energy, the device automatically shuts down after a period of inactivity or when the battery is low.

Technical Specifications:

• Type: Digital Chronograph
• Display: Color LCD, 240 x 240 pixels, backlit

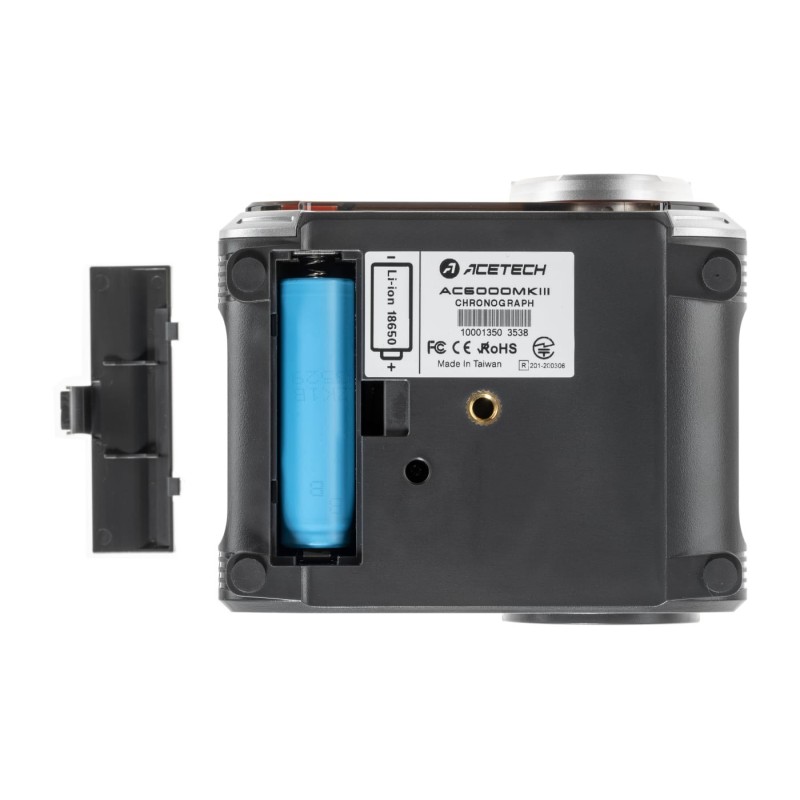

• Power Supply: 4x AA Batteries (not included) or via USB-C
• Measuring Tube Diameter: 36 mm
• Mounting: Tripod thread 1/4"-20 UNC
• Dimensions: 130 x 108 x 61 mm
• Weight: 285 g (without batteries)
• Brand: AceTech
• Model: AC6000 MKIII

Measurement Range and Settings:

• Muzzle Velocity: 30 – 400 m/s (90 – 1200 FPS)
• Rate of Fire (ROF): 100 – 5000 RPM (rounds per minute)
• Supported Calibers: 4.5 mm, 6 mm, 8 mm, 9 mm

Advantages:

• Clear and easy-to-read color LCD display
• Dual power source (AA and USB-C) for maximum flexibility
• Memory for shots and ammo profiles
• Wide measuring tube (36mm)
• High accuracy thanks to IR sensors and LED lenses
• Compact and lightweight, ideal for field and range use

Tips for Accurate Measurement:

• Use high-quality BBs of consistent weight (commonly 0.20g).
• Place the chronograph on a stable surface (such as a tripod).
• Shoot straight through the center of the measuring tube from a short distance.
• Ensure there is a safe area behind the chronograph.
• Take at least 3 shots to obtain an accurate average.
• After using gas-powered replicas, clean the sensors more frequently according to the instructions.

Package Contents:

• 1x AceTech AC6000 MKIII Chronograph
• 1x User manual (Batteries and USB-C cable not included)
