POM AIR BRAKE Piston Head - FPS
  • POM AIR BRAKE Piston Head - FPS
  • POM AIR BRAKE Piston Head - FPS

POM AIR BRAKE Piston Head - FPS

15.90
Tax included

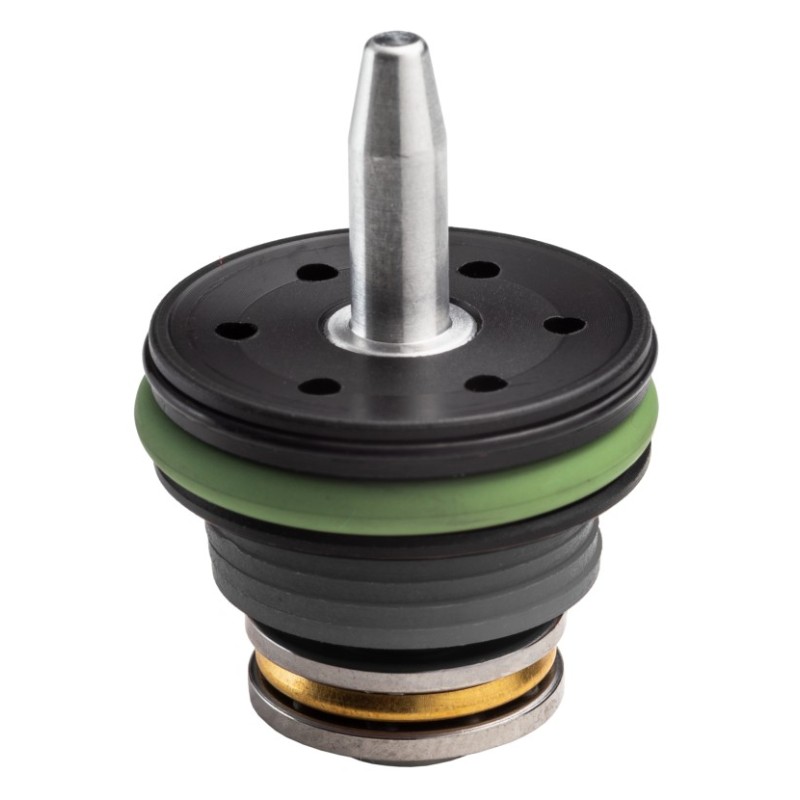

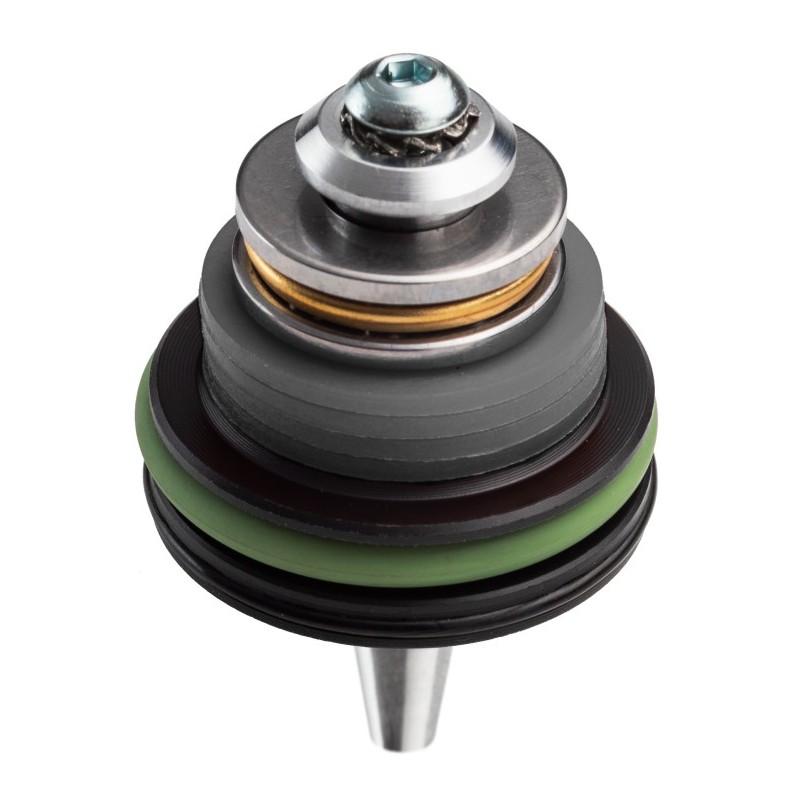

FPS AIR BRAKE piston head in POM, with double O-ring and thrust bearing. AIR BRAKE system for maximum silence. Angle of Engagement (AOE) adjustment via included shims (1-4mm). 100% Made in Italy and 100% Marui compatible.

clear

Size Guide

This is an approximate conversion table to help you find your size. If you have already purchased an item from our brand, we recommend you select the same size indicated on its label.

Men's Sizes

International XS S M L XL XXL XXXL
Europe 32 34 36 38 40 42 44
US 0 2 4 6 8 10 12
Chest Circumference (inches) 33-35" 36-38" 39-41" 42-44" 45-47" 48-50" 51-53"
Chest Circumference (cm) 84-89 91-97 98-104 107-112 114-119 122-127 129-134
Waist Circumference (inches) 28" 30" 32" 34" 36" 38" 40"
Waist circumference (cm) 71 76 81 86 91.5 96.5 101.5

LOWA FOOTWEAR SIZE CHART

SIZE SELECTION:

THE SIZES IN THE DROP-DOWN MENU ARE UK SIZES (ENGLISH)

conversion chart: UK size - (IT size) - size in mm

Size 6.5 (40) 257mm

Size 7 (40 3/4) 262mm

Size 7.5 (41.5) 266mm

Size 8 (42) 270mm

Size 8.5 (42.5) 274mm

Size 9 (43 1/4) 278mm

Size 9.5 (44) 283mm

Size 10 (44.5) 287mm

Size 10.5 (45) 291mm

Size 11 (46) 295mm

Size 11.5 (46.5) 300mm

Size 12 (47) 304mm

Size 12.5 (48) 308mm

Size 13 (48.5) 312mm

NEED ADVICE ON CHOOSING A SIZE?

Take one of your sneakers and look at the size in mm or cm, look at the diagram above to see what it corresponds to and order your size!

e.g., your sneaker is 27.2 cm long? Great, the closest and most correct size will be: "TG 8.5 (42.5) 274mm", in the purchase menu select size 8.5UK!

Size Guide
Real time: 1 Visitor right now

Loyalty program By buying this product you can collect up to 1 loyalty point. Your cart will total 1 point that can be converted into a voucher of 0.20.



Quantity
Last items in stock

This FPS AIR BRAKE piston head is a high-quality upgrade component, designed and manufactured in Italy (100% Made in Italy) to improve the performance and, above all, the silence of electric airsoft guns (AEGs).

Main Features:

  • Material: Made of POM (Polyoxymethylene), a technical polymer with excellent mechanical properties and a low coefficient of friction.
  • Double O-ring: Guarantees a superior air seal compared to piston heads with a single O-ring.
  • Thrust bearing: Reduces friction and stress on the spring during the firing cycle.
  • AIR BRAKE System: This system creates an "air cushion" between the piston head and the cylinder head, dampening the impact and drastically reducing noise. It is the quietest piston head produced by FPS, recommended for bursts up to 24 BBs per second.
  • AOE (Angle of Engagement) Adjustment: Includes shims (1, 2, 3 and 4mm) to adjust the length of the piston/piston head assembly and find the best possible angle of engagement with the teeth of the sector gear. A correct AOE is fundamental for the durability and reliability of the gearbox. The piston head can also be used without shims.
  • Compatibility: AEG gearboxes (to be verified for specific models)

Technical Specifications:

  • Type: Piston head with AIR BRAKE system
  • Material: POM
  • Features: Double O-ring, thrust bearing, AIR BRAKE system, AOE adjustment
  • Weight: 10.89g
  • Brand: FPS
  • Production: 100% Made in Italy
  • Compatibility: 100% Marui compatible (and with most standard gearboxes)
  • Recommended Rate of Fire: up to 24 bb/s

Advantages:

  • Maximum silence (thanks to the AIR BRAKE system)
  • Double O-ring for a superior air seal
  • Thrust bearing to reduce friction
  • AOE adjustment via included shims
  • Made of POM
  • Made in Italy
  • 100% Marui compatible
