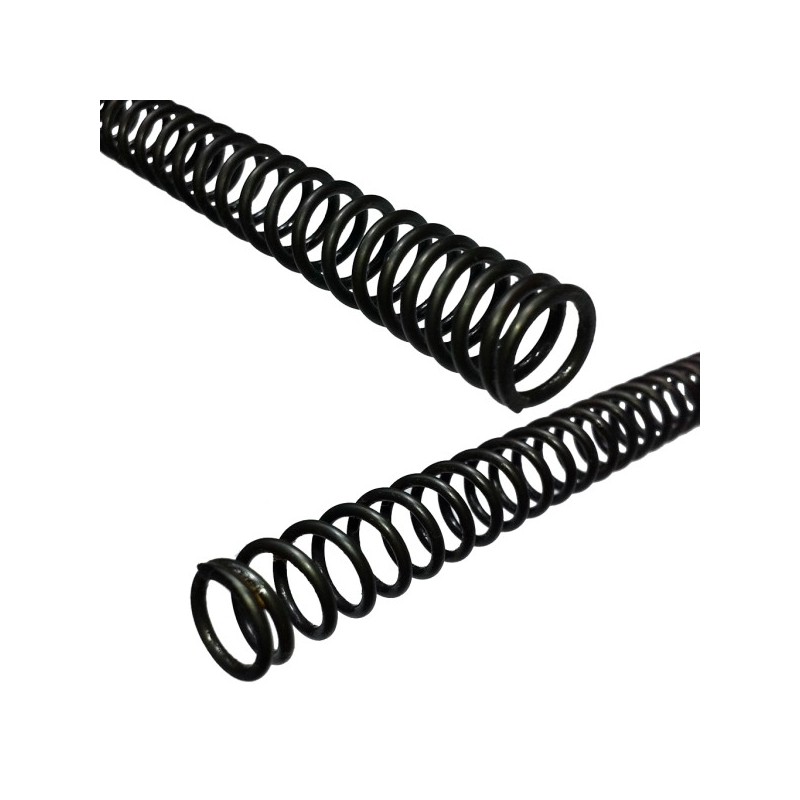

FPS Steel Spring for WELL MB03 - FPS

10.90

Tax included

Specific FPS spring for WELL MB03 sniper rifle. Calibrated on the original mechanics. Made of EN10270/2 (Si-Cr) carbon steel, burnished and pre-tempered, heat treated. Variable pitch coils and ground ends. Available in different power ratings (90-140 m/s). 100% Made in Italy. Pay attention to the final power and bearings

Size Guide

This is an approximate conversion table to help you find your size. If you have already purchased an item from our brand, we recommend you select the same size indicated on its label.

Men's Sizes

International	XS	S	M	L	XL	XXL	XXXL
Europe	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
Chest Circumference (inches)	33-35"	36-38"	39-41"	42-44"	45-47"	48-50"	51-53"
Chest Circumference (cm)	84-89	91-97	98-104	107-112	114-119	122-127	129-134
Waist Circumference (inches)	28"	30"	32"	34"	36"	38"	40"
Waist circumference (cm)	71	76	81	86	91.5	96.5	101.5

LOWA FOOTWEAR SIZE CHART

SIZE SELECTION:

THE SIZES IN THE DROP-DOWN MENU ARE UK SIZES (ENGLISH)

conversion chart: UK size - (IT size) - size in mm

Size 6.5 (40) 257mm

Size 7 (40 3/4) 262mm

Size 7.5 (41.5) 266mm

Size 8 (42) 270mm

Size 8.5 (42.5) 274mm

Size 9 (43 1/4) 278mm

Size 9.5 (44) 283mm

Size 10 (44.5) 287mm

Size 10.5 (45) 291mm

Size 11 (46) 295mm

Size 11.5 (46.5) 300mm

Size 12 (47) 304mm

Size 12.5 (48) 308mm

Size 13 (48.5) 312mm

NEED ADVICE ON CHOOSING A SIZE?

Take one of your sneakers and look at the size in mm or cm, look at the diagram above to see what it corresponds to and order your size!

e.g., your sneaker is 27.2 cm long? Great, the closest and most correct size will be: "TG 8.5 (42.5) 274mm", in the purchase menu select size 8.5UK!

Real time: 1 Visitor right now

By buying this product you can collect up to 1 loyalty point. Your cart will total 1 point that can be converted into a voucher of 0.20.

Durezza Molla

M 90
M 100
M 120
M 140

Quantity

In stock!

Description
Product Details

This FPS spring is a high-quality component, 100% Made in Italy, designed and specifically calibrated for the original mechanics of the WELL MB03 airsoft sniper rifle.

Materials and Construction:

Material: Burnished and pre-tempered carbon steel wire, with the addition of silicon and chromium (EN10270 / 2), for maximum strength and durability.
Heat Treatment: After forming, the spring is stabilized in an oven at 400°C for 30 minutes, optimizing its lifespan and maintaining consistent performance.
Variable Pitch Design: Features variable pitch coils in the central area and in the area in contact with the spring guide, for smoother compression and optimal release.
Ground Ends: The two ends of the spring are ground to ensure a flat support and optimal performance during compression.

Calibration and Performance:

The indicated power (e.g. 100 m/s, 120 m/s) has been calibrated using the original WELL MB03 mechanics.
Variations: The actual performance (FPS/Joule) will vary based on:
- Barrel length: Shorter barrels = lower performance; longer barrels = higher performance.
- Air seal: The quality of the air group seal significantly affects the power.
Bearings: The calibration does not take into account any thickness added by bearings on the spring guide or piston head. An increase of approximately 2.5 m/s is estimated for each bearing used.

Technical Specifications:

Type: Spring for sniper rifle (Bolt Action)
Compatibility: Specifically calibrated for WELL MB03 (original mechanics). It may be dimensionally compatible with other VSR-10 systems, but performance will vary.
Material: EN10270/2 burnished and pre-tempered carbon steel (Si-Cr)
Design: Variable pitch, ground ends
Brand: FPS
Production: 100% Made in Italy

Available Variants:

Nominal Power	Length (mm)	Outer Diameter (mm)
Note: The indicated power is calibrated on the original Well MB03 mechanics. Actual performance may vary. Always check the final power with a chronograph.
90 M/S	215 mm	10 mm
100 M/S	210 mm	10.25 mm
120 M/S	210 mm	10.25 mm
140 M/S	210 mm	10.25 mm

Advantages:

Made with the highest quality steel and specific treatments
Variable pitch design and ground ends for optimal performance
Specifically calibrated for the original WELL MB03 mechanics
100% Made in Italy

IMPORTANT - WARNING:

The indicated nominal power (m/s) is a reference value calculated on the original mechanics. Always check the actual power of the replica with a chronograph after installation to ensure you remain within legal limits (e.g. 1 Joule in Italy) and the limits allowed by the playing field.
