TITAN V2 Control System - EXPERT MODULE - Rear Wired - GATE

The TITAN V2 (Expert Module) control system from GATE is an advanced electronic control system (ETU - Electronic Trigger Unit and MOSFET) designed to radically transform the performance and functionality of electric airsoft (AEG) replicas with version 2 (V2) gearboxes (e.g., M4/M16, SR-25, HK416, SCAR, etc.). It completely replaces traditional trigger contacts. This version has rear wiring (for replicas with the battery in the stock).

Main Features:

• Replaces trigger contacts: Every trigger pull results in a shot, eliminating contact problems and improving response.
• 8 sensors:
  • 1 sector gear sensor (for detecting piston position).
  • 2 selector plate sensors (for detecting fire selector position).
  • 5 trigger sensors (for precise sensitivity adjustment).
• Numerous programmable functions (via USB-LINK or Blu-Link, sold separately):
  • Trigger sensitivity: Adjustable via 5 optical sensors.
  • Firing modes: SAFE - SEMI/BURST - BURST/AUTO and other combinations, configurable independently for each selector position.
  • Automatic burst: No need to manually set the burst duration; you can set from 2 to 10 shots.
  • Binary trigger: Fires one shot when the trigger is pulled and another when it is released.
  • Automatic pre-cocking: The piston is pre-loaded after each shot for a faster trigger response in semi-automatic mode. Pre-cocking is adjustable (high, medium, low).
  • Full Cycle: When pre-cocking is disabled, the TITAN ensures that the piston always stops in the forward position after each cycle, eliminating unnecessary stress and increasing gearbox durability.
  • Rate Of Fire (ROF) limitation: Allows you to limit the rate of fire.
  • ROF STAB: Control for a stable rate of fire.
  • DMR mode: Sets a delay between shots in semi-automatic mode.
  • Smart trigger: In combination with ROF limitation, allows you to fire the first shot at full speed and subsequent shots at reduced speed.
  • AUG mode: Two-stage trigger (as in the AUG).
  • Equalizer
  • Notification Settings
  • Battery protection and low voltage warning: The TITAN automatically detects the number of battery cells and stops firing when the voltage drops below a preset level, protecting the battery from damage. The motor vibrates as a warning.
  • Smart fuse: Protects the motor and control system in case of overheating or overload.
  • Adaptive active brake: Reduces motor wear by gradually braking it (instead of blocking it immediately).
  • Integrated self-test.
• Battery compatibility: Supports LiPo batteries up to 14.8V.
• Programming: Programming requires the use of:
  • USB-LINK (sold separately) or
  • Blu-Link (sold separately)
  • And the GATE Control Station (GCS) app (downloadable for free).
• Statistics and diagnostics: The GCS app includes usage statistics and unit diagnostics.
• Protective coating
• Prepared for Deans connectors (T-Plug)
• Mini-Tamiya adapter
• Compatibility: V2 Gearbox

Technical Specifications:

• Type: Electronic control system (ETU/MOSFET)
• Model: TITAN V2 (Expert Module)
• Brand: GATE
• Compatibility: Version 2 (V2) gearbox, rear wiring
• Functions: See list above
• Programming: Via USB-LINK or Blu-Link (sold separately) and GCS app
• Supported batteries: Up to 14.8V LiPo
• Battery Connector: t-deans

Advantages:

• Radically transforms the performance of the replica
• Numerous programmable functions to customize the shooting experience
• Protects the battery and internal components
• Improves trigger response and ROF
• Adds realism (e.g., binary trigger)

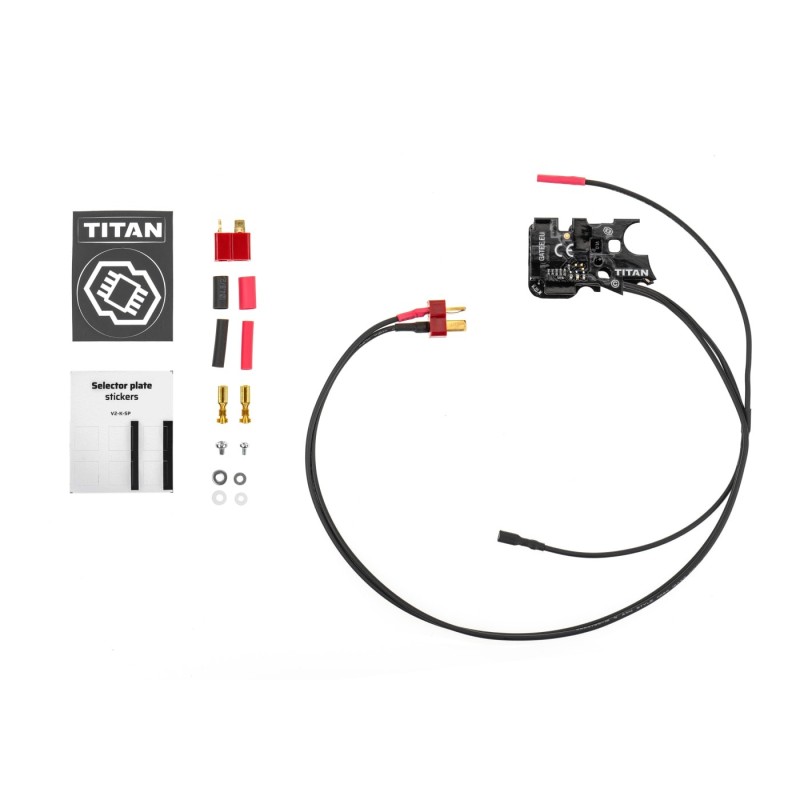

Package contents:

• TITAN V2 Expert control system with rear wiring
• Mounting accessories
