TITAN II V2 Bluetooth® EXPERT Control System Rear Wired - GATE

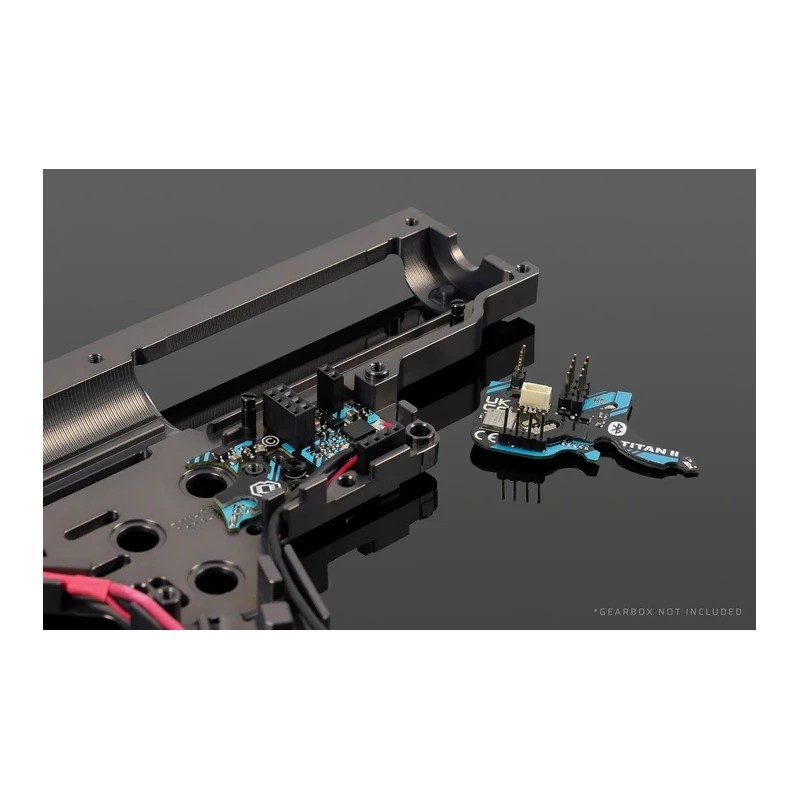

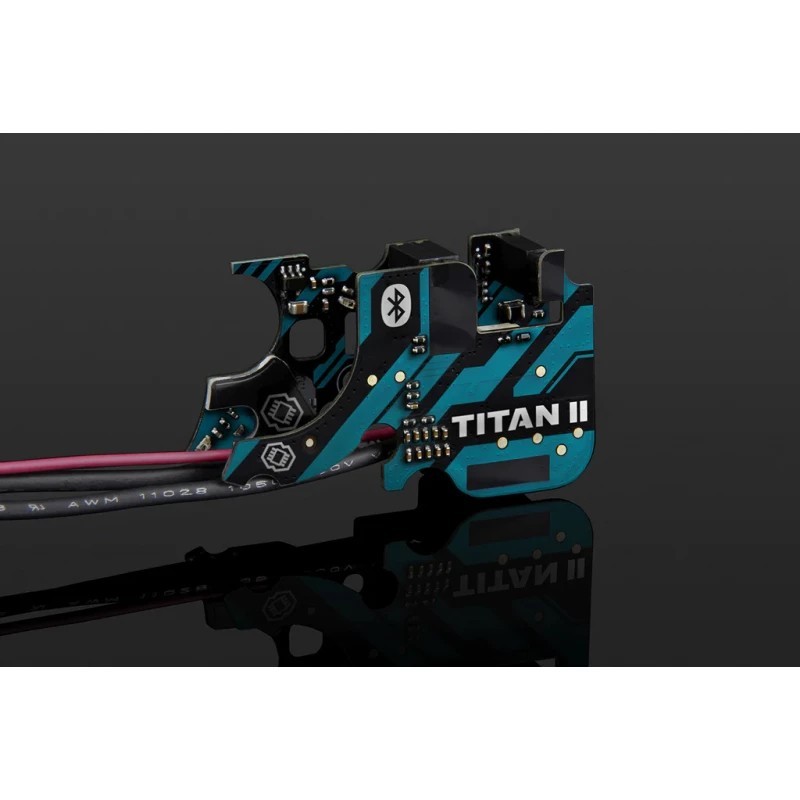

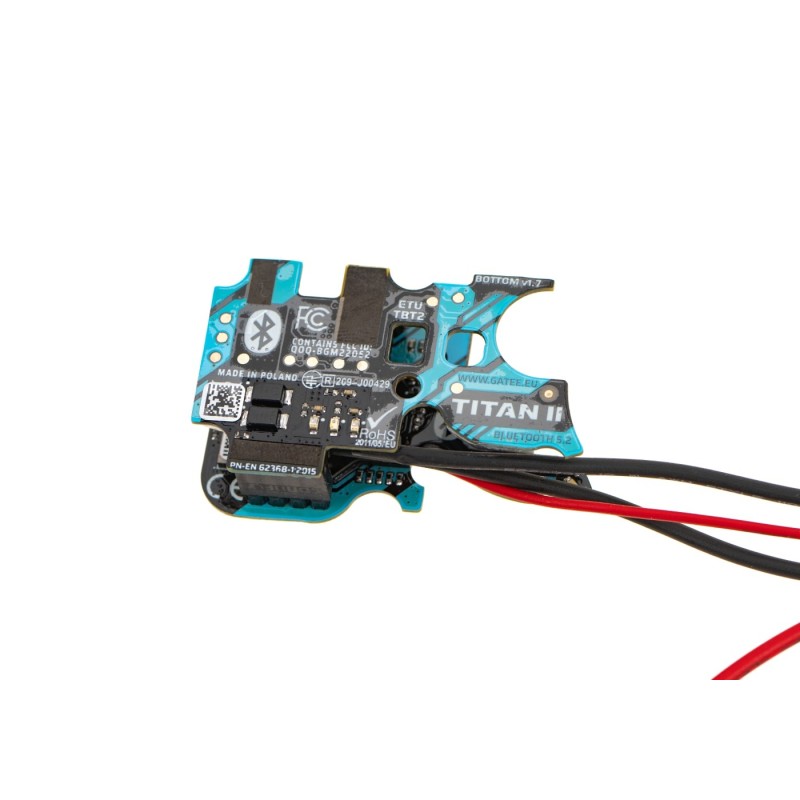

The TITAN V2 (Expert Bluetooth) control system from GATE is an advanced electronic control system (ETU - Electronic Trigger Unit and MOSFET) designed to radically transform the performance and functionality of electric airsoft (AEG) replicas with version 2 gearboxes (V2) (e.g., M4/M16, SR-25, HK416, SCAR, etc.). It completely replaces traditional trigger contacts. This version has rear wiring (for replicas with the battery in the stock).

Main Features:

• Replaces trigger contacts: Every trigger pull results in a shot, eliminating contact issues and improving response.

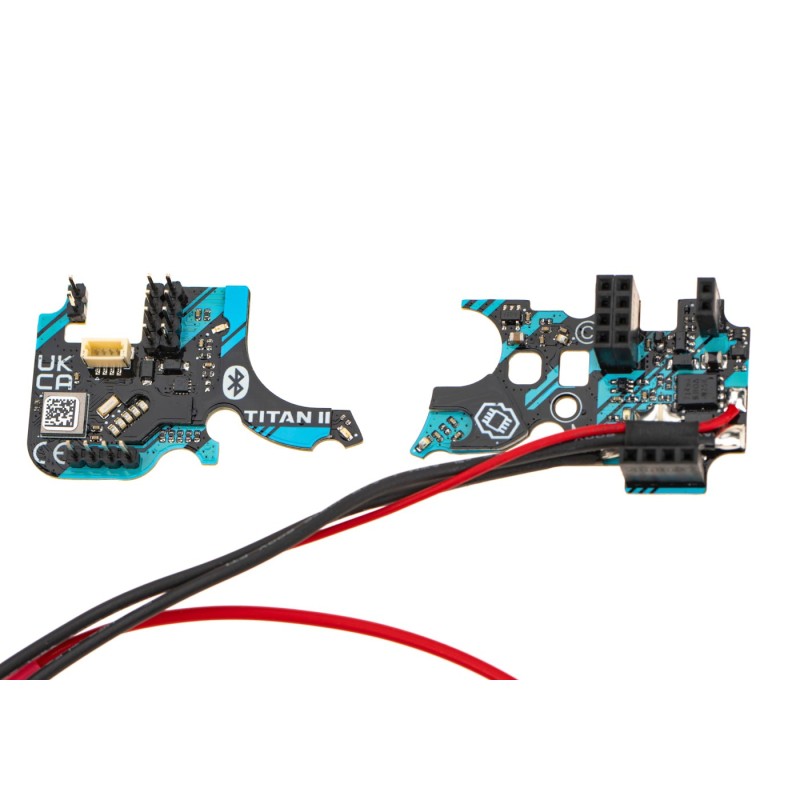

• 8 sensors:
  • 1 gear sensor (for detecting piston position).
  • 2 selector sensors (for detecting fire selector position).
  • 5 trigger sensors (for precise sensitivity adjustment).
• Bluetooth Connectivity: Allows programming and monitoring via the GCS (Gate Control Station) app on smartphones, without the need for additional cables or adapters.
• Numerous programmable functions (via GCS app):
  • Trigger Sensitivity: Adjustable via 5 optical sensors.
  • Fire Modes: SAFE - SEMI/BURST - BURST/AUTO and other combinations, configurable independently for each selector position.
  • Automatic Burst: No need to manually set the burst duration; you can set from 2 to 10 shots.
  • Binary Trigger: Fires one shot when the trigger is pulled and another when it is released.
  • Automatic Pre-cocking: The piston is pre-loaded after each shot for a faster trigger response in semi-automatic mode. Pre-cocking is adjustable (high, medium, low).
  • Full Cycle: When pre-cocking is disabled, the TITAN ensures that the piston always stops in the forward position after each cycle, eliminating unnecessary stress and increasing gearbox durability.
  • Rate Of Fire (ROF) Limitation: Allows you to limit the rate of fire.
  • ROF STAB: Control for a stable rate of fire.
  • DMR Mode: Sets a delay between shots in semi-automatic mode.
  • Smart Trigger: In combination with ROF limitation, allows you to fire the first shot at full speed and subsequent shots at reduced speed.
  • AUG Mode: Two-stage trigger (as in the AUG).
  • Battery Protection and Low Voltage Warning: The TITAN automatically detects the number of battery cells and stops firing when the voltage drops below a preset level, protecting the battery from damage. The motor vibrates as a warning.
  • Smart Fuse: Protects the motor and control system in case of overheating or overload.
  • Adaptive Active Brake: Reduces motor wear by gradually braking it (instead of blocking it immediately).
  • Integrated Self-Test.
• Battery Compatibility: Supports LiPo batteries up to 14.8V.
• Wiring: Rear

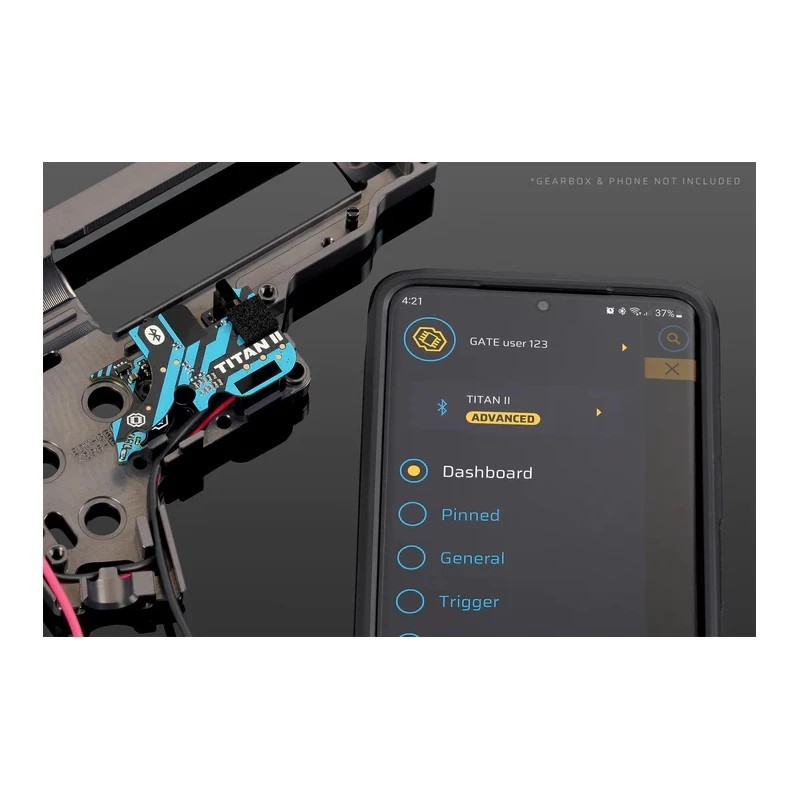

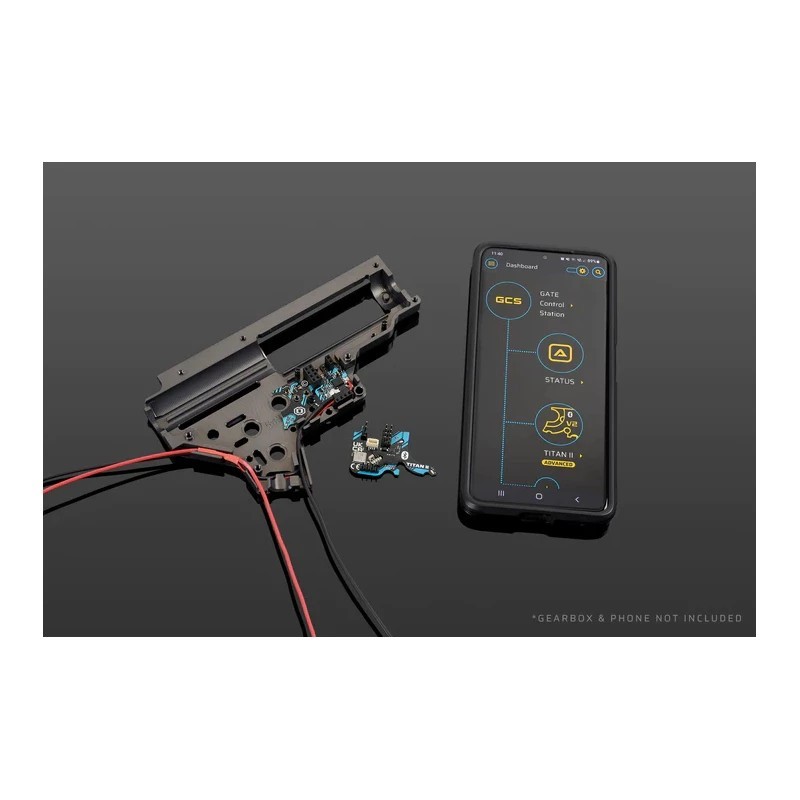

• Programming: Via the GATE Control Station app (downloadable for free), connected via Bluetooth. The app also includes usage statistics and unit diagnostics.
• Compatibility: Gearbox V2

Technical Specifications:

• Type: Electronic control system (ETU/MOSFET)
• Model: TITAN V2 (Expert Bluetooth)
• Brand: GATE
• Compatibility: Version 2 gearbox (V2), rear wiring
• Functions: See list above
• Programming: Via GCS app (Bluetooth connection)
• Supported Batteries: Up to 14.8V LiPo
• Battery Connector: (Not specified)

Advantages:

• Radically transforms the performance of the replica
• Numerous programmable functions to customize the shooting experience
• Bluetooth connectivity for programming and monitoring
• 8 sensors for precise control
• Protects the battery and internal components
• Improves trigger response and ROF
• Adds realism (e.g., binary trigger)

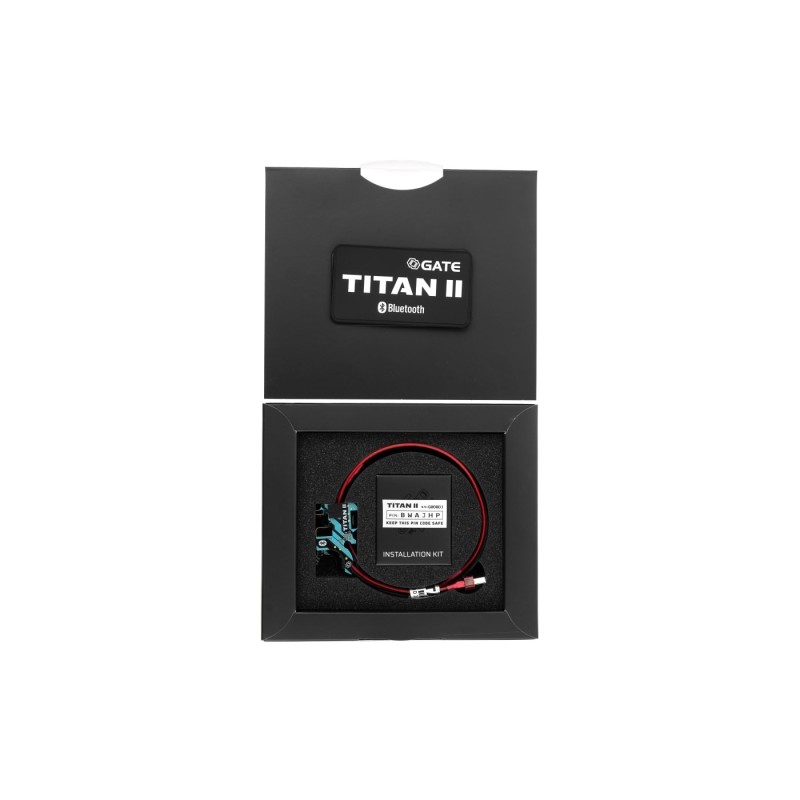

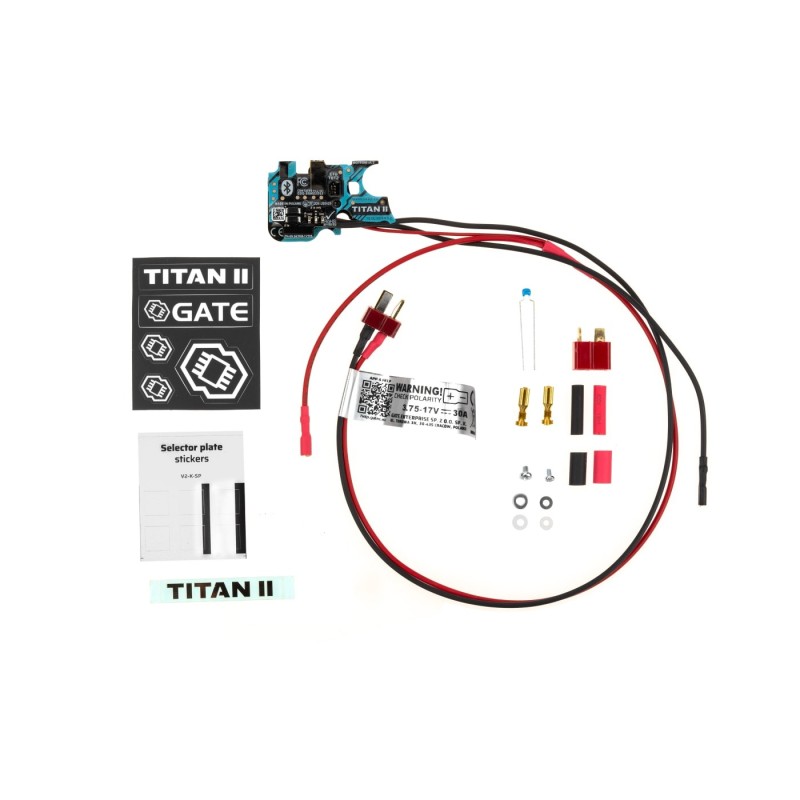

Package Contents:

• TITAN V2 Expert Bluetooth control system with rear wiring
• Mounting accessories (not specified in detail)
