TITAN V3 Control System - EXPERT MODULE - GATE

The TITAN V3 (Expert Module) control system from GATE is an advanced electronic control system (ETU - Electronic Trigger Unit and MOSFET) designed to radically transform the performance and functionality of electric airsoft (AEG) replicas with version 3 (V3) gearboxes (e.g., AK, G36, etc.). It completely replaces the traditional trigger contacts.

Main Features:

• Replaces trigger contacts: Every trigger pull results in a shot, eliminating contact problems and improving response.
• Numerous programmable functions:
  • Trigger sensitivity: Adjustable via 5 optical sensors.
  • Firing modes: SAFE - SEMI/BURST - BURST/AUTO and other combinations.
  • Adjustable burst: From 2 to 99 shots, with a minimum interval between shots of 4ms.
  • Binary trigger: Fires one shot when the trigger is pressed and another when it is released.
  • Pre-cocking: The piston is pre-loaded immediately after each shot for a faster trigger response in semi-automatic mode.
  • ROF (Rate Of Fire) limitation: Allows you to limit the rate of fire.
  • DMR mode: Sets a delay between shots in semi-automatic mode.
  • Smart trigger: In combination with ROF limitation, allows you to fire the first shot at full speed and subsequent shots at reduced speed.
  • Two-stage trigger: (e.g., for AUG replicas)
  • Battery protection and low voltage warning: The TITAN automatically detects the number of battery cells and stops firing when the voltage drops below a preset level, protecting the battery from damage. The motor vibrates as a warning.
  • Smart fuse: Protects the motor and control system in case of overheating or overload.
  • Active brake: Reduces motor wear by gradually braking it (instead of blocking it immediately).
• Battery compatibility: Supports LiPo batteries up to 14.8V.
• Programming: Programming is done via:
  • USB LINK Programming Card (sold separately).
  • Blu-Link (sold separately).
  • GATE Control Station App (available for free download), in combination with USB LINK or Blu-Link. The Expert Bluetooth version can be programmed directly via the app, without the need for additional accessories.
• Statistics and diagnostics: The GATE Control Station app includes usage statistics (total shot count) and unit diagnostics.

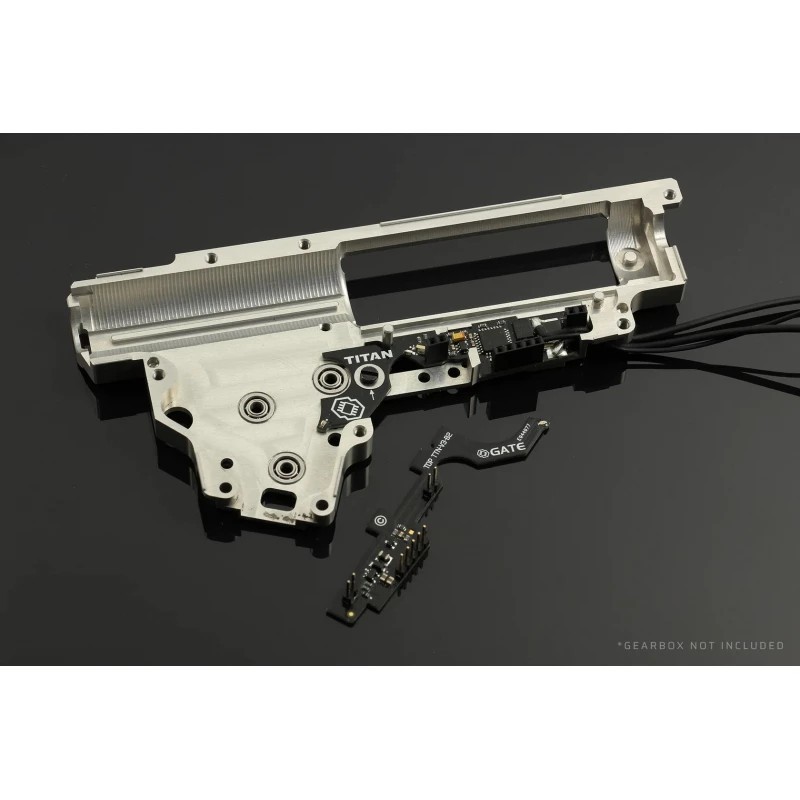

• Compatibility: AEG Replicas with Gearbox V3

Available Versions:

The TITAN is available in different versions:

• Based on the TITAN model:
  • Basic Module: Fewer functions, but upgradeable.
  • Expert (this version): All functions available.
  • Expert Bluetooth: All functions, programmable via app without additional accessories.
• Based on the gearbox type:
  • V2 (for weapons such as M4/16, SR-25, HK416, SCAR, etc.)
  • V3 (for weapons such as AK47, AK74, AUG, MP5K, etc.) - This version
• Based on the cable arrangement:
  • In the stock
  • In the handguard

Technical Specifications:

• Type: Electronic control system (ETU/MOSFET)
• Model: TITAN V3 (Expert Module)
• Brand: GATE
• Compatibility: Gearbox version 3 (V3)
• Functions: See list above
• Programming: Via USB LINK (sold separately), Blu-Link (sold separately) or GATE Control Station app (for the Expert Bluetooth version, via integrated Bluetooth)
• Supported batteries: Up to 14.8V LiPo

Advantages:

• Radically transforms the performance of the replica
• Numerous programmable functions to customize the shooting experience
• Protects the battery and internal components
• Improves trigger response and ROF
• Adds realism (e.g., binary trigger)
• Easy programming (with optional accessories or via Bluetooth, depending on the version)

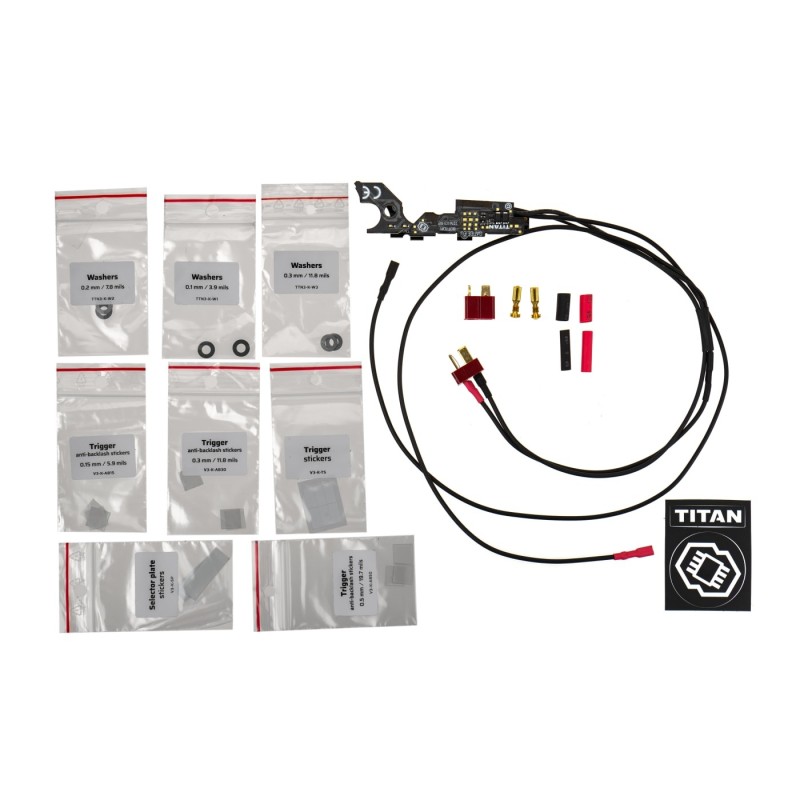

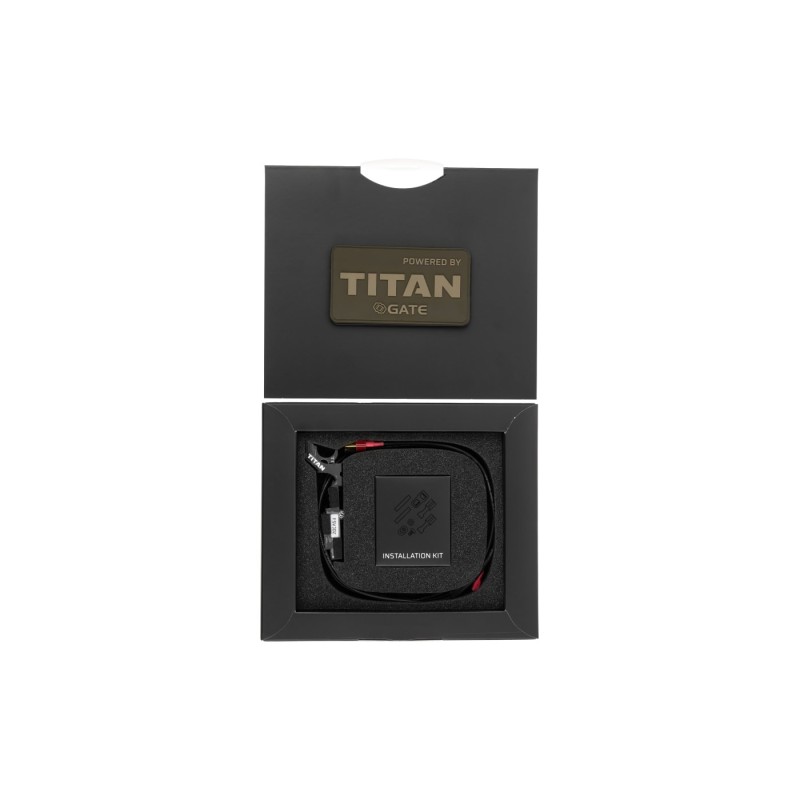

Package contents:

• TITAN V3 Expert control system with wiring
