Micro Active Brake II with Wiring - Jefftron

34.90

Tax included

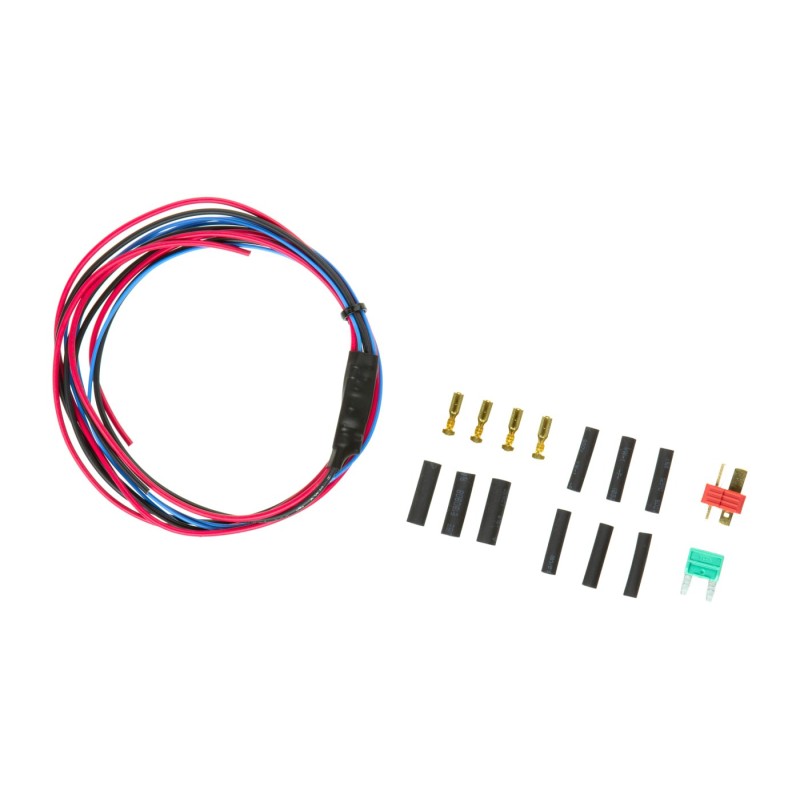

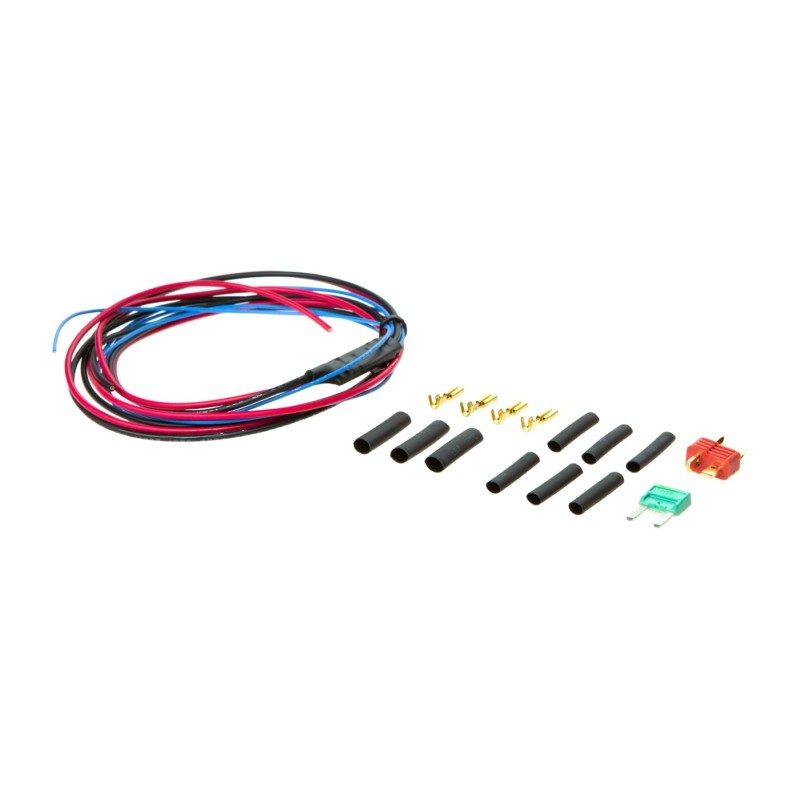

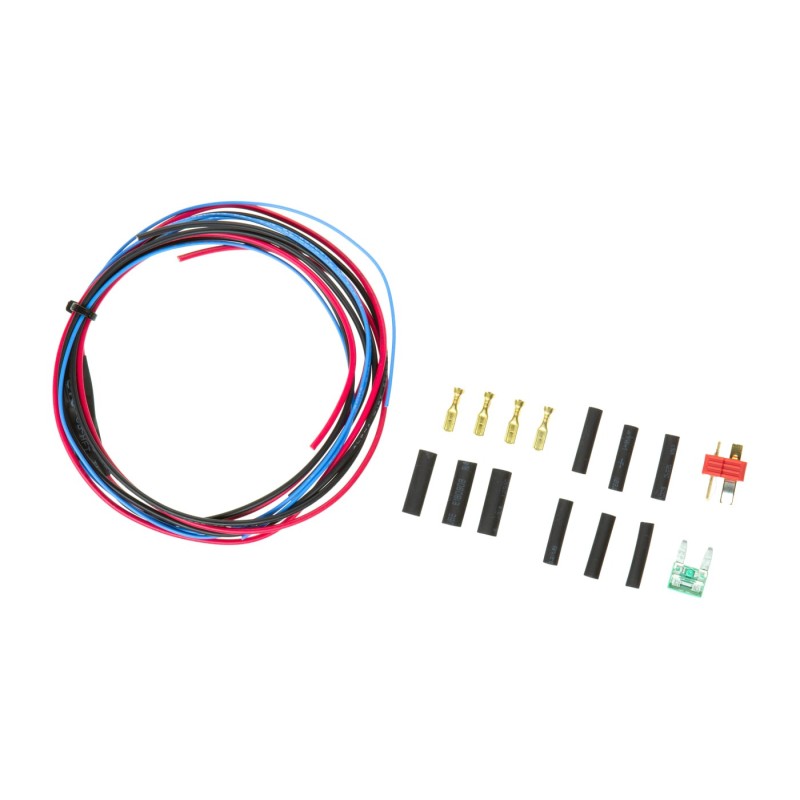

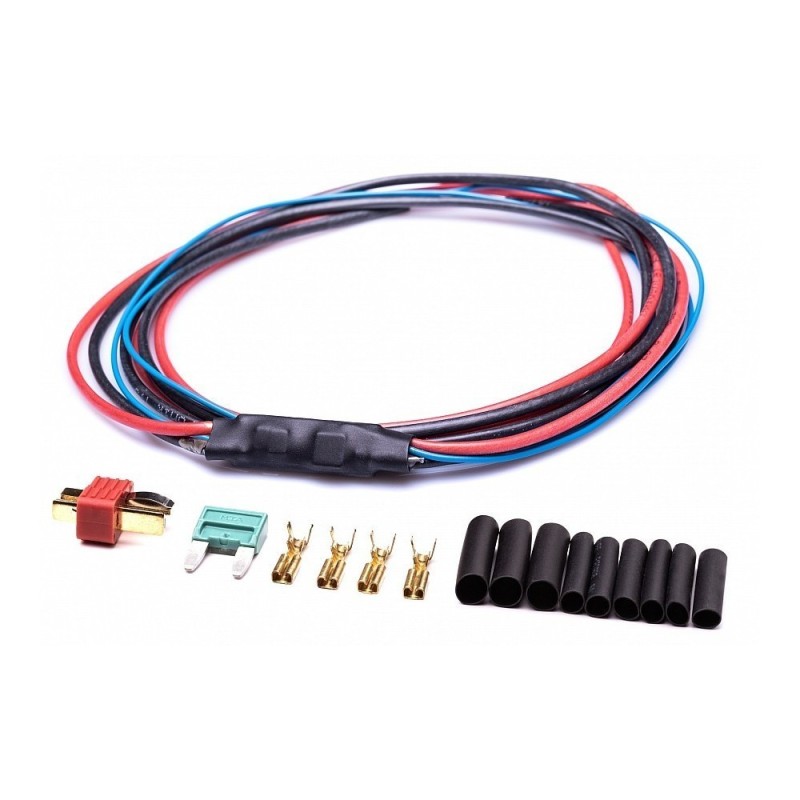

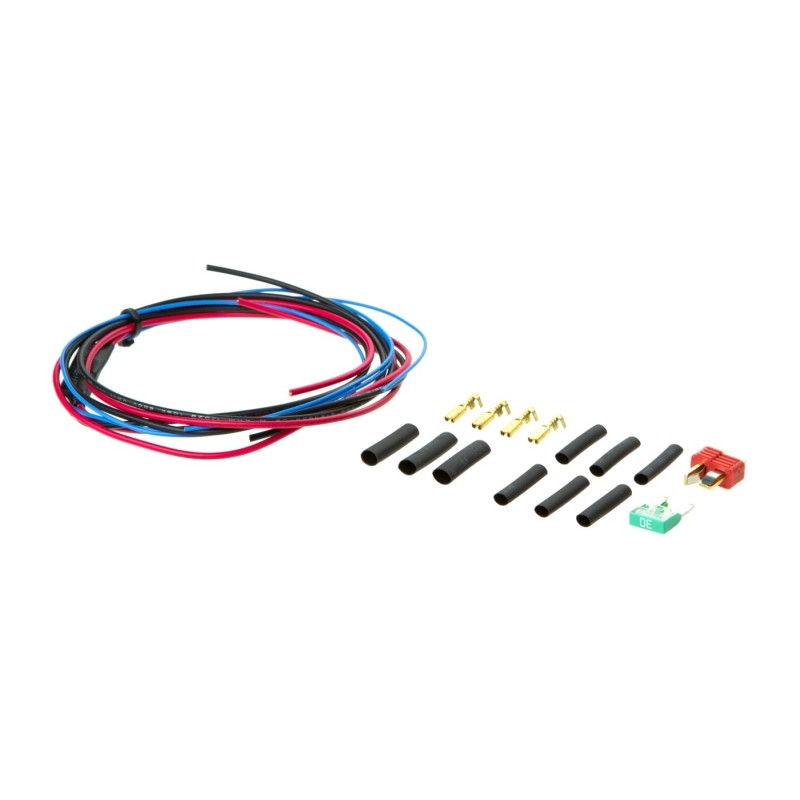

The JeffTron MICRO ACTIVE BRAKE II MOSFET is a very compact electronic device for AEGs that increases the ROF, extends battery life, eliminates sparking on the contacts, and adds active braking functionality. Suitable for springs up to M160 and batteries up to 17V. Pre-soldered cables (AWG16 and AWG22, with MPPE insulation) for easy installation. Connectors included.

Size Guide

This is an approximate conversion table to help you find your size. If you have already purchased an item from our brand, we recommend you select the same size indicated on its label.

Men's Sizes

International	XS	S	M	L	XL	XXL	XXXL
Europe	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
Chest Circumference (inches)	33-35"	36-38"	39-41"	42-44"	45-47"	48-50"	51-53"
Chest Circumference (cm)	84-89	91-97	98-104	107-112	114-119	122-127	129-134
Waist Circumference (inches)	28"	30"	32"	34"	36"	38"	40"
Waist circumference (cm)	71	76	81	86	91.5	96.5	101.5

LOWA FOOTWEAR SIZE CHART

SIZE SELECTION:

THE SIZES IN THE DROP-DOWN MENU ARE UK SIZES (ENGLISH)

conversion chart: UK size - (IT size) - size in mm

Size 6.5 (40) 257mm

Size 7 (40 3/4) 262mm

Size 7.5 (41.5) 266mm

Size 8 (42) 270mm

Size 8.5 (42.5) 274mm

Size 9 (43 1/4) 278mm

Size 9.5 (44) 283mm

Size 10 (44.5) 287mm

Size 10.5 (45) 291mm

Size 11 (46) 295mm

Size 11.5 (46.5) 300mm

Size 12 (47) 304mm

Size 12.5 (48) 308mm

Size 13 (48.5) 312mm

NEED ADVICE ON CHOOSING A SIZE?

Take one of your sneakers and look at the size in mm or cm, look at the diagram above to see what it corresponds to and order your size!

e.g., your sneaker is 27.2 cm long? Great, the closest and most correct size will be: "TG 8.5 (42.5) 274mm", in the purchase menu select size 8.5UK!

Real time: 1 Visitor right now

By buying this product you can collect up to 3 loyalty points. Your cart will total 3 points that can be converted into a voucher of 0.60.

Description
Product Details

The JeffTron MICRO ACTIVE BRAKE II MOSFET is an electronic device designed to improve the performance and reliability of electric airsoft replicas (AEGs). This MOSFET is very small (27x10x7mm), suitable for installation in almost all replicas. It does not replace the original trigger contacts, but is added to the existing wiring. This version includes pre-soldered cables to simplify installation.

MOSFET Features and Benefits:

Increased ROF (Rate of Fire): The MOSFET manages the electrical current more efficiently, increasing the rate of fire.
Battery Saving: Reduces electrical resistance, extending battery life.
Spark Elimination: Protects trigger contacts.
Active Braking: Uses the excess energy of the motor to stop it quickly after each firing cycle. This:
- Prevents "double shots" in semi-automatic mode.
- Reduces stress on the spring and internal components.
- Improves the seal of the air nozzle.
Circuit protection:

Technical Specifications:

Type: MOSFET with active brake
Dimensions: 27x10x7mm
Wiring: Pre-soldered cables:
- Power cables: AWG16 (1.5 mm²) with MPPE insulation.
- Signal cable: AWG22 (0.34 mm²) blue, with MPPE insulation.
Protection: Conformal coating for water resistance.
Maximum spring: Up to M160 (equivalent to 75A in single shot or 25A in burst for a maximum of 30 seconds)
Maximum battery: Up to 17V (Ni-xx 8.4-12V, Li-Po 7.4-14.8V)
Standby consumption: None
Active brake: Yes (more effective with high torque motors)
Brand: JeffTron
Compatibility: AEG

Requirements: Gearbox in good condition, with functioning components (cut-off lever, selector plate, anti-reversal latch, trigger, trigger lock).

Package contents:
