G5 SMART programmable brushless motor by GATE and Solink. Adjust the speed (10,000-46,000 RPM) and torque via app! Integrated anti-reverse mechanism, high efficiency and advanced connectivity. Compatible with V2 gearboxes.
This is an approximate conversion table to help you find your size. If you have already purchased an item from our brand, we recommend you select the same size indicated on its label.
| International | XS | S | M | L | XL | XXL | XXXL |
|---|---|---|---|---|---|---|---|
| Europe | 32 | 34 | 36 | 38 | 40 | 42 | 44 |
| US | 0 | 2 | 4 | 6 | 8 | 10 | 12 |
| Chest Circumference (inches) | 33-35" | 36-38" | 39-41" | 42-44" | 45-47" | 48-50" | 51-53" |
| Chest Circumference (cm) | 84-89 | 91-97 | 98-104 | 107-112 | 114-119 | 122-127 | 129-134 |
| Waist Circumference (inches) | 28" | 30" | 32" | 34" | 36" | 38" | 40" |
| Waist circumference (cm) | 71 | 76 | 81 | 86 | 91.5 | 96.5 | 101.5 |
LOWA FOOTWEAR SIZE CHART
SIZE SELECTION:
THE SIZES IN THE DROP-DOWN MENU ARE UK SIZES (ENGLISH)
conversion chart: UK size - (IT size) - size in mm
Size 6.5 (40) 257mm
Size 7 (40 3/4) 262mm
Size 7.5 (41.5) 266mm
Size 8 (42) 270mm
Size 8.5 (42.5) 274mm
Size 9 (43 1/4) 278mm
Size 9.5 (44) 283mm
Size 10 (44.5) 287mm
Size 10.5 (45) 291mm
Size 11 (46) 295mm
Size 11.5 (46.5) 300mm
Size 12 (47) 304mm
Size 12.5 (48) 308mm
Size 13 (48.5) 312mm
NEED ADVICE ON CHOOSING A SIZE?
Take one of your sneakers and look at the size in mm or cm, look at the diagram above to see what it corresponds to and order your size!
e.g., your sneaker is 27.2 cm long? Great, the closest and most correct size will be: "TG 8.5 (42.5) 274mm", in the purchase menu select size 8.5UK!
By buying this product you can collect up to 22
loyalty points.
Your cart will total 22
points that can be converted into a voucher of
4.40.

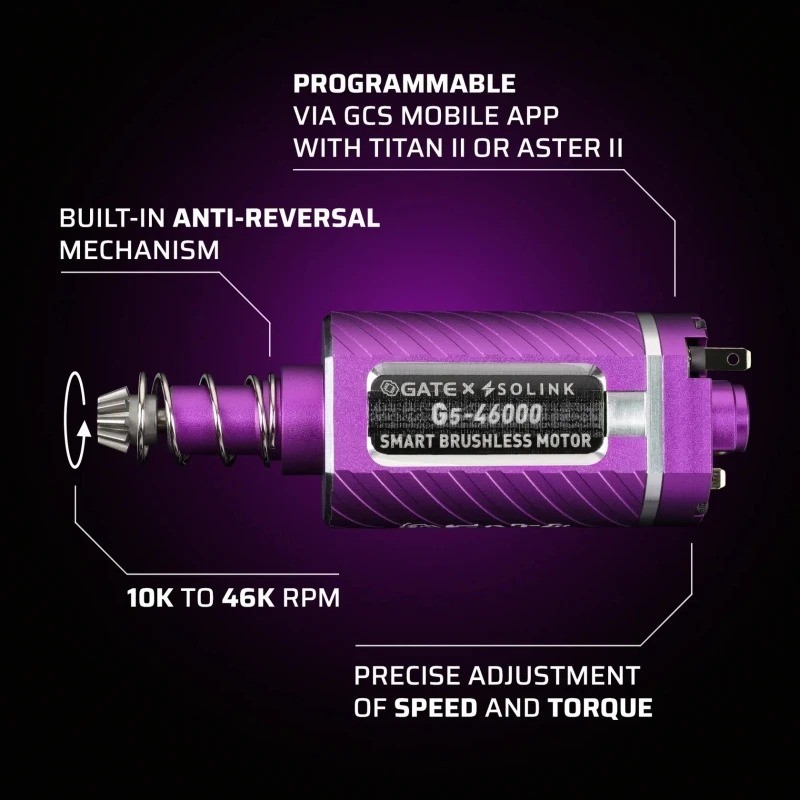

The G5 SMART motor from GATE and Solink is the world's first app-programmable brushless motor. Thanks to the GCS app (Gate Control Station for Android and iOS), you can precisely adjust the motor speed from 10,000 to 46,000 RPM and customize the torque to suit your gearbox configuration.
This innovative motor features an integrated anti-reverse mechanism, eliminating the need to install a separate anti-reverse latch. This ensures quieter gearbox operation and more precise pre-cocking settings.
The G5 SMART also offers Soft Start mode to protect the gearbox and Fast Start mode for instant trigger response. Its high efficiency reduces battery consumption and prevents motor overheating.
Key Features:
- Programmable via GCS app
- Integrated anti-reverse mechanism
- High-quality, durable connectors
- CNC machined motor shaft
- High braking power

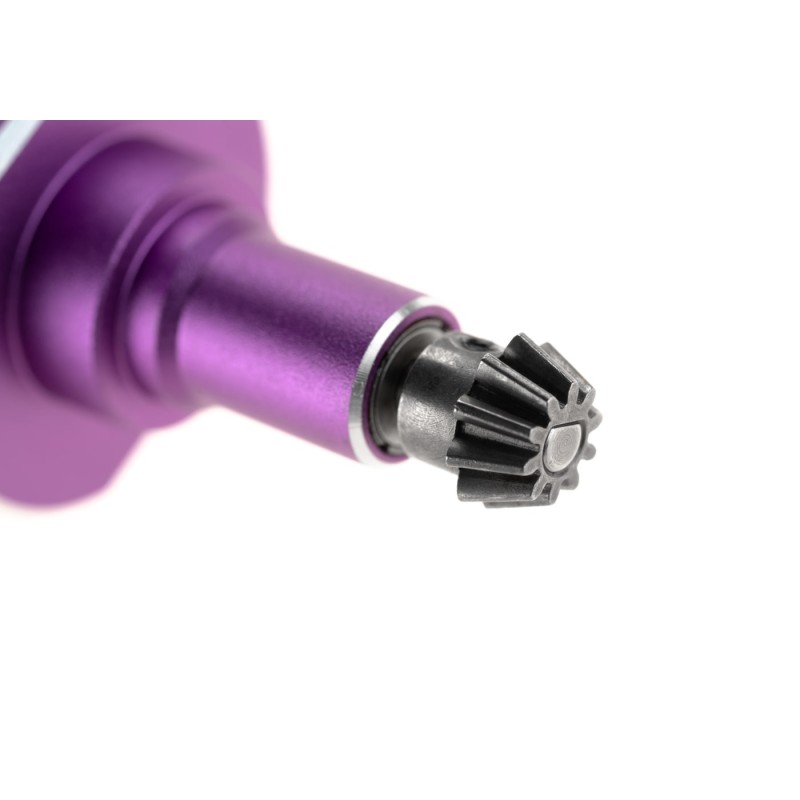

- Standard D-type pinion
Technical Specifications:
- Operating voltage: 6-16.8 V
- Dimensions: 88.5 x 29.5 x 25 mm
- Weight: 141 g
- No-load current draw: 3.2 A (at 45,800 RPM)
- Maximum efficiency: 75.9%
- Maximum output power: 519 W
- Torque: 2334 g/cm
- RPM range: 10,000-46,000 RPM
Programming Compatibility:
- Smart programming functions supported by: TITAN II Bluetooth, ASTER II Bluetooth by GATE
- Standard use as a brushless motor (without RPM settings): ASTER SE for V2, ASTER SX for V2, TITAN V2 (1st gen), JeffTron Leviathan (enable Brushless mode), T238 and other ETU V2 units
