47cm Flexible Tactical Antenna SMA-F for Radio - BAOFENG

19.90

Tax included

Flexible and foldable tactical antenna by Baofeng, 47cm length, SMA-Female (SMA-F) connector. Designed for Baofeng radios (e.g., UV-5R), but also compatible with Wouxun, Quansheng, Anytone and other radios with SMA-Male connector. Maximum power 20W, frequencies 144/430 MHz. Improves signal while maintaining compact dimensions.

Size Guide

This is an approximate conversion table to help you find your size. If you have already purchased an item from our brand, we recommend you select the same size indicated on its label.

Men's Sizes

International	XS	S	M	L	XL	XXL	XXXL
Europe	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
Chest Circumference (inches)	33-35"	36-38"	39-41"	42-44"	45-47"	48-50"	51-53"
Chest Circumference (cm)	84-89	91-97	98-104	107-112	114-119	122-127	129-134
Waist Circumference (inches)	28"	30"	32"	34"	36"	38"	40"
Waist circumference (cm)	71	76	81	86	91.5	96.5	101.5

LOWA FOOTWEAR SIZE CHART

SIZE SELECTION:

THE SIZES IN THE DROP-DOWN MENU ARE UK SIZES (ENGLISH)

conversion chart: UK size - (IT size) - size in mm

Size 6.5 (40) 257mm

Size 7 (40 3/4) 262mm

Size 7.5 (41.5) 266mm

Size 8 (42) 270mm

Size 8.5 (42.5) 274mm

Size 9 (43 1/4) 278mm

Size 9.5 (44) 283mm

Size 10 (44.5) 287mm

Size 10.5 (45) 291mm

Size 11 (46) 295mm

Size 11.5 (46.5) 300mm

Size 12 (47) 304mm

Size 12.5 (48) 308mm

Size 13 (48.5) 312mm

NEED ADVICE ON CHOOSING A SIZE?

Take one of your sneakers and look at the size in mm or cm, look at the diagram above to see what it corresponds to and order your size!

e.g., your sneaker is 27.2 cm long? Great, the closest and most correct size will be: "TG 8.5 (42.5) 274mm", in the purchase menu select size 8.5UK!

Real time: 1 Visitor right now

By buying this product you can collect up to 1 loyalty point. Your cart will total 1 point that can be converted into a voucher of 0.20.

Description
Product Details

This tactical antenna by Baofeng is an accessory designed to improve the transmission and reception performance of portable radios, particularly those of the Baofeng brand (such as the popular UV-5R and derivatives), but it is also compatible with radios from other brands such as Wouxun, Quansheng, Anytone, Puxing, Alinco, Yaesu and others, as long as they have an SMA-Male connector.

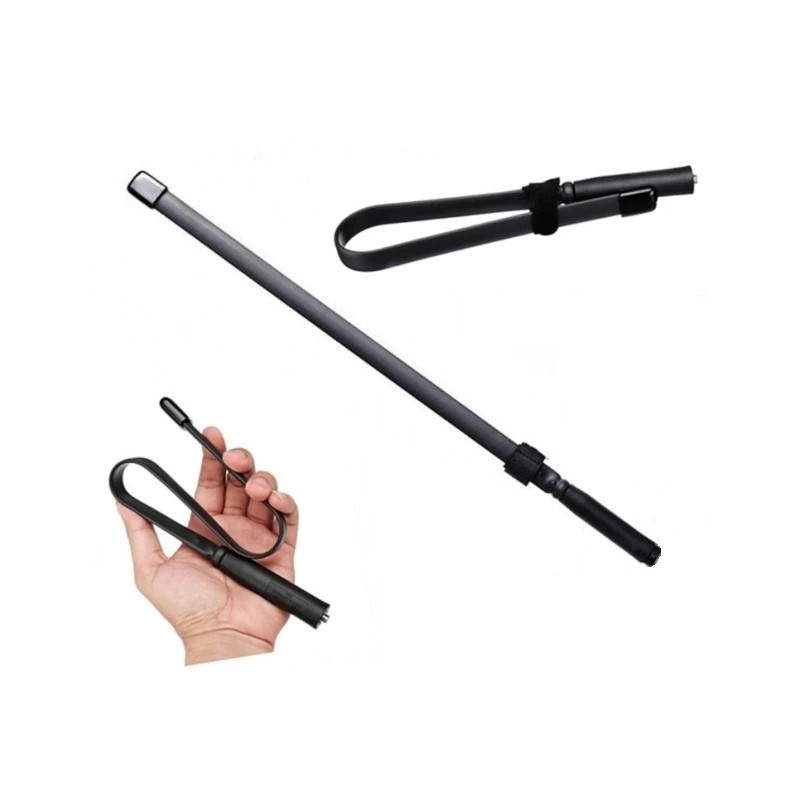

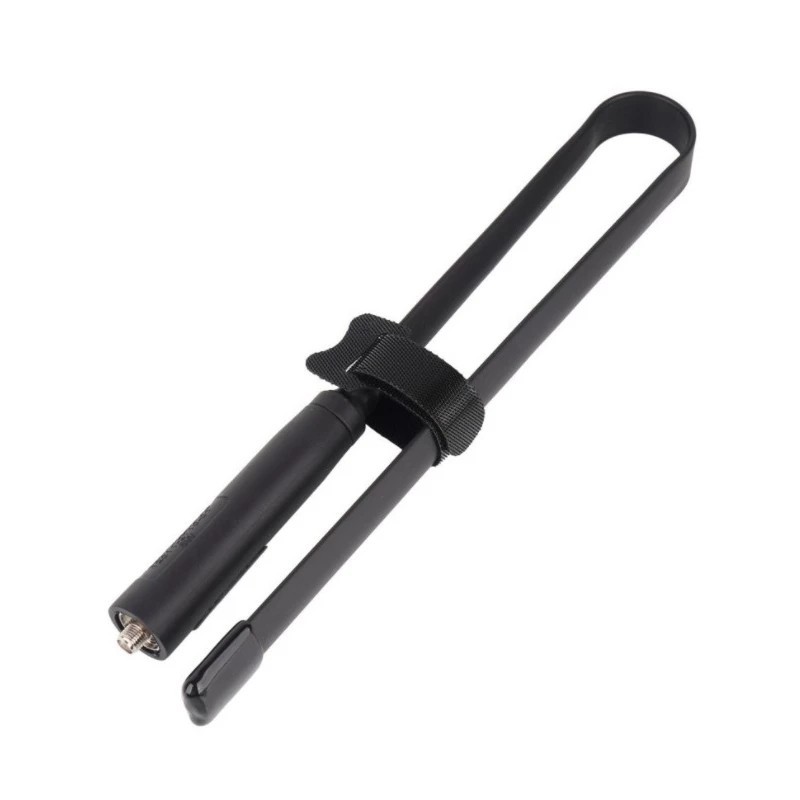

The antenna is flexible and foldable, which makes it practical to carry and less prone to breakage than rigid antennas. When extended, it has a length of 47cm, offering a gain of 2.15 dBi and improving the signal range.

It uses an SMA-Female (SMA-F) connector, which screws directly onto the radio. It is designed to operate on the frequencies 144 MHz (VHF) and 430 MHz (UHF), the most common amateur radio bands. It supports a maximum transmission power of 20W.

Technical Specifications:

Type: Flexible and foldable tactical antenna
Length: 47cm
Connector: SMA-Female (SMA-F)
Frequencies: 144 MHz / 430 MHz (VHF/UHF)
Gain: 2.15 dBi
Maximum Power: 20W
Impedance: 50 ohm
Material: Rubber (with metal core)
Brand: Baofeng
Compatibility: see list in the long description.

Compatible Radio Models (Non-Exhaustive List):

BAOFENG: BF-888S, UV-5R (all variants: RA, RC, RE, 8W, RTP, HX, etc.), UV-82 (all variants: HP, HX, etc.), A-52 Plus, DM-5R (> V2)
Quansheng: TG-UV2 Plus, UV-R50
ANYTONE: AT-D868UV, AT-D878UV
Puxing: Models with SMA-Male connector
Wouxun: KG-UVD1P
Alinco: DJ-500, DJ-MD5, DJ-VX50
Yaesu: FT-4X, FT-65
Other radios: Any radio with SMA-Male connector
